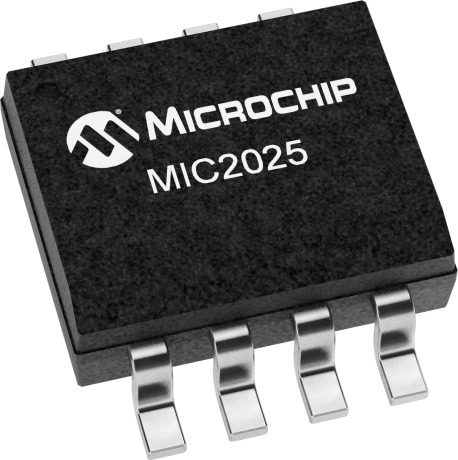

MIC2025-1YM More Semiconductors - ICs by Microchip Technology

Single USB High-Side 500mA Current Limiting Power Switch

Status: Active
Series: MIC2025
RoHS: Compliant
Download Datasheet Visit Manufacturer Site View Pricing & Stock

The MIC2025 and MIC2075 are high-side MOSFET switches optimized for general-purpose power distribution requiring circuit protection. The MIC2025/75 are internally current limited and have thermal shutdown that protects the device and load. The MIC2075 offers "smart" thermal shutdown that reduces current consumption in fault modes. When a thermal shutdown fault occurs, the output is latched off until the faulty load is removed. Removing the load or toggling the enable input will reset the device output. Both devices employ soft-start circuitry that minimizes inrush current in applications where highly capacitive loads are employed. A fault status output flag is provided that is asserted during overcurrent and thermal shutdown conditions. The MIC2025/75 is available in the MM8® 8-lead MSOP and 8-lead SOP.
