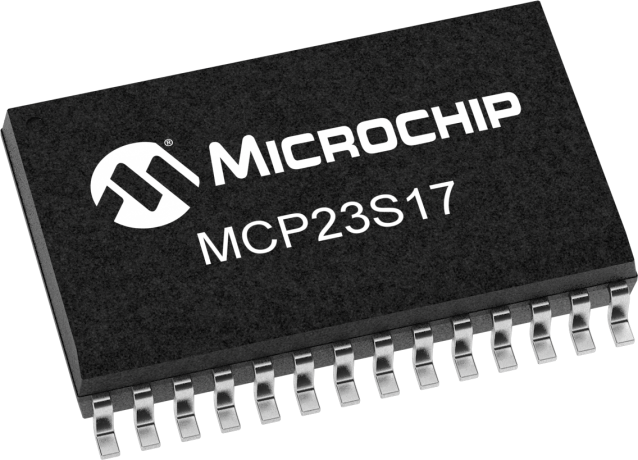

MCP23S17T-E/SO MCP23S17 by Microchip Technology
16-BIT I/O EXPANDERS WITH I2C & SPI INTERFACE
| Status: | Unknown |
|---|---|
| Series: | - |
| RoHS: | Unknown |
• MCP23017 – I2C interface
• MCP23S17 – SPI interface
The MCP23X17 consists of multiple 8-bit configuration registers for input, output and polarity selection. The system master can enable the I/Os as either inputs or outputs by writing the I/O configuration bits (IODIRA/B). The data for each input or output is kept in the corresponding input or output register. The polarity of the Input Port register can be inverted with the Polarity Inversion register. All registers can be read by the system master.
Where to Buy
Prices starting from US$1.09
| Distributor | Stock | ||
|---|---|---|---|
|
RS
from US$2.11
|
4,560
in stock
|
Buy Now |
|
Microchip Technology
from US$1.24
|
210,186
in stock
|
Buy Now |
|
element14
from US$1.38
|
21,241
in stock
|
Buy Now |
|
Farnell
from US$1.09
|
21,241
in stock
|
Buy Now |
|
Future Electronics
from US$1.40
|
1,600
in stock
|
Buy Now |
|
Distrelec
from US$1.76
|
1,600
in stock
|
Buy Now |
|
Newark Electronics
from US$1.28
|
811
in stock
|
Buy Now |
|
Avnet America
from US$1.69
|
-
|
Buy Now |
|
|
RS Americas
from US$1.45
|
-
|
Buy Now |
|
EBV Elektronik
-
|
-
|
Buy Now |
|
Avnet Silica
-
|
-
|
Buy Now |
Features
| 16-bit input/output port expander with interrupt output |
| Cascadable for up to 8 devices on one bus |
| 25mA sink/source capability per I/O |
| Supports up to 10MHz SPI™ clock speeds |
Specifications
| Device Description | 35 |
|---|---|
| Operating Voltage Min. (V) | 1.8 |
| Operating Voltage Max. (V) | 5.5 |
| Temp Range Min | -40 |
| Temp. Range Max. | 125 |
| Interface | 256 |
| Max. Bus Frequency (kBits/s) | 10000 |
| I/O Pins | 16 |
| Speed | 10M |
| HW Address Pins | 3 |
| Interrupt Out Pin | 2 |
| Reset Pin | Yes |
| Edge Detection | Yes |
| Pin Current (mA) | 25 |
| Total Current (mA) | 160 |
| Open Drain Outputs | - |
| IO Voltage Tolerant | VDD |
| Temperature | E |
| Temperature Range | -40C to +125C |
Alternative Descriptions
| IC, I/O EXPANDER, 16BIT, 28SOIC | element14 |
| 16-bit Input/Output Expander, SPI interf | RS |
| 16-BIT INPUT/OUTPUT EXPANDER, SPI INTERFACE, PB-FREE | Future Electronics |
| Microchip I/O Expander, SPI, Number of I/Os %3D 16, SOIC-28 | Distrelec |
| I/O Expander, 16 Bit, 10Mhz, Soic-28 | Newark Electronics |
| I/O Expander 28-Pin SOIC W T/R | Avnet America |
| 16-bit Input/Output Expander, SPI interface, Pb-free28 SOIC .300in T/R | Microchip Technology Inc. MCP23S17T-E/SO | RS Americas |
