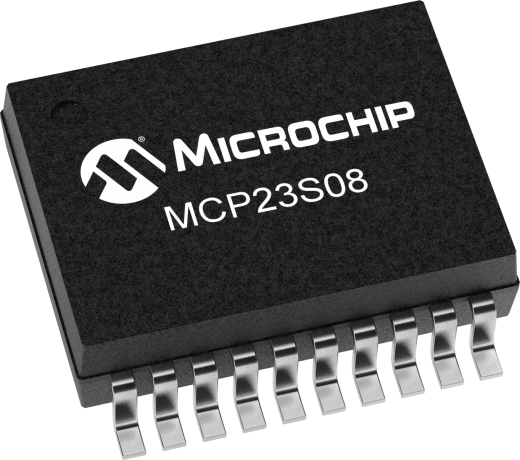

MCP23S08-E/SS MCP23S08 by Microchip Technology
8-bit I/O Expander with SPI Interface.
| Status: | Unknown |
|---|---|
| Series: | - |
| RoHS: | Unknown |
• MCP23008 – I2C interface; three address pins
• MCP23S08 – SPI interface; two address pins
The MCP23X08 consists of multiple 8-bit configuration registers for input, output and polarity selection. The system master can enable the I/Os as either inputs or outputs by writing the I/O configuration bits. The data for each input or output is kept in the corresponding Input or Output register. The polarity of the Input Port register can be inverted with the Polarity Inversion register. All registers can be read by the system master.
Where to Buy
Prices starting from US$0.95
| Distributor | Stock | ||
|---|---|---|---|
|
RS
from US$1.53
|
467
in stock
|
Buy Now |
|
Microchip Technology
from US$1.12
|
18,869
in stock
|
Buy Now |
|
Newark Electronics
from US$1.16
|
4,461
in stock
|
Buy Now |
|
element14
from US$1.27
|
4,460
in stock
|
Buy Now |
|
Farnell
from US$1.29
|
4,460
in stock
|
Buy Now |
|
Micros
from US$1.39
|
134
in stock
|
Buy Now |
|
TME
from US$1.92
|
118
in stock
|
Buy Now |
|
Chip One Stop
from US$0.95
|
103
in stock
|
Buy Now |
|
Future Electronics
from US$1.14
|
4
in stock
|
Buy Now |
|
EBV Elektronik
-
|
134
in stock
|
Buy Now |
|
Avnet America
from US$1.14
|
-
|
Buy Now |
|
|
RS Americas
from US$1.33
|
-
|
Buy Now |
|
Avnet Silica
-
|
-
|
Buy Now |
| Buy Now |
Features
| 8-bit port expander with interrupt output |
| 2 address inputs for up to 4 devices on one bus |
| 25mA sink/source capability per I/O |
| Supports up to 10MHz SPI™ clock speeds |
| Internal power-on-reset (POR) |
Specifications
| Device Description | 45 |
|---|---|
| Operating Voltage Min. (V) | 1.8 |
| Operating Voltage Max. (V) | 5.5 |
| Temp Range Min | -40 |
| Temp. Range Max. | 125 |
| Interface | 256 |
| Max. Bus Frequency (kBits/s) | 10000 |
| I/O Pins | 8 |
| Speed | 10M |
| HW Address Pins | 2 |
| Interrupt Out Pin | 1 |
| Reset Pin | Yes |
| Edge Detection | Yes |
| Pin Current (mA) | 25 |
| Total Current (mA) | 160 |
| Open Drain Outputs | - |
| IO Voltage Tolerant | VDD |
| Temperature | E |
| Temperature Range | -40C to +125C |
