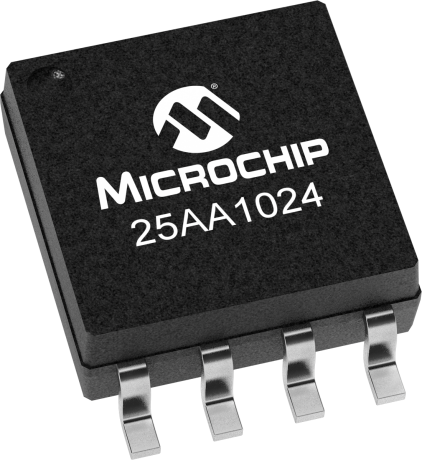

25AA1024-I/SM Memory by Microchip Technology

1Mb 1.8V SPI Serial EEPROM

Status: Active
Series: 25AA1024
RoHS: Compliant
Download Datasheet Visit Manufacturer Site View Pricing & Stock

The Microchip 25AA1024 is a 1 Mb Serial EEPROM utilizing the industry standard Serial Peripheral Interface (SPI) compatible serial bus. The device is organized as one block of 128K x 8-bit and is optimized for use in consumer electronics, industrial, medical, and automotive applications where reliable and dependable nonvolatile memory storage is essential. Software write protection allows the user to protect ¼, ½, or the entire memory array. A hardware write protect pin is also provided, which additionally protects against inadvertent writes to the status register. The EEPROM is available in a variety of space-saving packaging options.

Where to Buy

Prices starting from US$3.24

Distributor Stock
Logo for RS
from US$3.74
in stock
Buy Now
Logo for Microchip Technology
Microchip Technology
from US$3.24
in stock
Buy Now
Logo for Newark Electronics
Newark Electronics
from US$3.81
in stock
Buy Now
Logo for element14
from US$3.95
in stock
Buy Now
Logo for Farnell
from US$3.94
in stock
Buy Now
Logo for Future Electronics
Future Electronics
from US$3.44
in stock
Buy Now
Logo for Micros
from US$3.86
in stock
Buy Now
Logo for Chip One Stop
Chip One Stop
from US$3.43
in stock
Buy Now
Logo for CoreStaff
from US$4.93
in stock
Buy Now
Logo for Avnet America
Avnet America
from US$3.64
in stock
Buy Now
Logo for Transfer Multisort Elektronik
Transfer Multisort Elektronik
from US$3.87
in stock
Buy Now
Logo for EBV Elektronik
EBV Elektronik
in stock
Buy Now
Logo for RS Americas
RS Americas
from US$3.87
Buy Now
Logo for Avnet Silica
Avnet Silica
Buy Now


128K x 8-bit (1 Mbit)
Supports SPI modes 0 and 3
Up to 20 MHz clock frequency
Self-Timed Erase and Write Cycles (6 ms max.)
Read current: 10 mA (Max) at 20 MHz
Write current: 7mA (Max) at 5.5V
Deep power-down current: 1 µA (Max) at 2.5 V
Block Write Protection: Protect 1/4, 1/2 or Entire Array
More than 1 million erase/write cycles
Data retention > 200 years
Industrial (I): -40°C to 85°C
Automotive AECQ-100 Qualified1
Factory Programming Available
Available in standard packages including 8-lead PDIP and SOIJ, and advanced package 8-lead 5x6 DFN


Density (Organization) 1024 Kbit
Operating Voltage Min. (V) 1.8
Oper Voltage Max (V) 5.5
Max. Clock Freq. 20 MHz
Page Size (bytes) 256
Write Protected True
Write Protect Scheme Quarter, Half, Whole Array
Endurance 1,000,000
Data Retention (Years) 0
Bus Modes SPI
Battery Backup False
Pins | Packaging 8 | SOIJ
Temp Range -40C to +85C
Packing Media Tube (90)


Application Notes
AN909 - Interfacing SPI? Serial EEPROMs to PIC16 Devices
AN966 - Interfacing SPI Serial EEPROMs to Microchip PICmicro® Microcontrollers
AN995 - Using the C18 Compiler and the MSSP to Interface SPI? EEPROMs with PIC18 Devices
AN1000 - Using the MSSP Module to Interface SPI? Serial EEPROMs with PIC18 Devices
AN1006 - Interfacing SPI(TM) Serial EEPROMs to PIC18 Devices
AN1018 - Using the C18 Compiler to Interface SPI Serial EEPROMs with PIC18 Devices
AN1019 - EEPROM Endurance Tutorial
AN1040 - Recommended Usage of Microchip SPI Serial EEPROM Devices
AN1073 - Interfacing Microchip SPI Serial EEPROMs to NXP P89LPC9XX Microcontrollers Using Hardware Peripheral
AN1069 - Using C30 Compiler and the SPI module to Interface EEPROMs with dsPIC33F and PIC24F
AN1096 - Using the C30 Compiler to Interface SPI Serial EEPROMs with dsPIC33
AN1193 - Using C to Interface 8051 MCUs with SPI Serial EEPROMs
AN1197 - Using a Hardware Module to Interface 8051 MCUs with SPI Serial EEPROMs
AN1198 - Interfacing 8051 MCUs with SPI Serial EEPROMs
AN1234 - Using C and a Hardware Module to Interface Texas Instruments' MSP430XXXX MCUs with SPI Serial EEPROMs
AN1235 - Using C to Interface Texas Instruments' MSP430XXXX MCUs with SPI Serial EEPROMs
AN1419 - Adding Flexibility by Using Multiple Footprints for SPI Serial EEPROMs

Environmental Information

JEDEC Indicator e3
ROHS Compliant
China EFUP Compliant
Device Weight (g) 0.1244
Shipping Weight (kg) 0.266667
Lead Count 8
Package Type SOIJ
Package Width or Size .208in
Soldering Composition Matte Tin

Alternative Descriptions

1024K SPI SERIAL EEPROM, 1.8V | Microchip Technology
Serial Eeprom, 1Mbit, 20Mhz, Soij-8 | Newark Electronics
SERIAL EEPROM, 1MBIT, 20MHZ, SOIJ-8 | element14
25AA1024 Series 1 Mbit (128K x 8) 5.5 V SMT SPI Bus Serial EEPROM - SOIJ-8 | Future Electronics
1024k, 128K X 8 , 1.8V SER EEPROM IND | RS
Serial EEPROM, SPI, 1Mbit (128k x 8bit), 1.8÷5.5V, -40÷85°C | Micros
EEPROM Serial-SPI 1M-bit 128K x 8 2.5V/3.3V/5V 8-Pin SOIJ Tube | Avnet America
IC: EEPROM memory | Transfer Multisort Elektronik
Microchip Serial EEPROM Memory 1Mbit 250ns 1.8 to 5.5V 8-Pin SOIJ | Microchip Technology Inc. 25AA1024-I/SM | RS Americas

Frequently Asked Questions

Where can I find additional details, specifications and documents for a 25AA1024-I/SM?

Additional datasheets, footprints and schematics for 25AA1024-I/SM are listed on our Part Details page. You can also find images and similar parts to 25AA1024-I/SM on this page.

What pricing and inventory information can I view?

Distributor pricing and stock information is available for 25AA1024-I/SM on our Product Comparison page. Access via the 'View Pricing & Stock' button to view 25AA1024-I/SM price breaks, MOQs, lead times, inventory and SKUs from distributors.

What category does 25AA1024-I/SM fall under?

The 25AA1024-I/SM is listed under Semiconductors - ICs > Memory > EEPROM.

Can I view similar or alternative parts?

You can view similar parts to 25AA1024-I/SM when available in the EEPROM range under the specifications section at the bottom of the details page.

Who can I contact for technical support of the product?

Submit any questions directly to the customer support team of the distributor listing the product. For the 25AA1024-I/SM you can contact the distributor directly for product support, shipping queries etc.

Is the 25AA1024-I/SM RoHS compliant?

Yes. This part has been flagged as RoHS Compliant by Microchip Technology.

Which authorised distributors for 25AA1024-I/SM have stock available?

Authorised distributors including Microchip Technology, Newark Electronics, element14, Farnell and Future Electronics have stock available or on a lead time for 25AA1024-I/SM.

How do I check stock and lead times for all distributors?

Stock availability and lead times will be displayed for 25AA1024-I/SM often in real-time on the comparison pages.

What if I can't find stock of 25AA1024-I/SM?

You can fill out our help required form which you can use to request a quote for 25AA1024-I/SM from some of our verified obsolescence suppliers. Alternatively, contact us via our web chat in the bottom left of your screen and one of our team will try to help.
