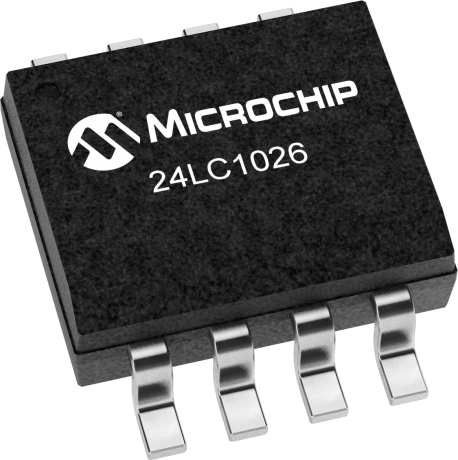

24LC1026-I/SN Memory by Microchip Technology
1Mb I2C compatible 2-wire Serial EEPROM
| Status: | Active |
|---|---|
| Series: | 24LC1026 |
| RoHS: | Compliant |
Where to Buy
Prices starting from US$3.15
| Distributor | Stock | ||
|---|---|---|---|
|
RS
from US$3.80
|
30
in stock
|
Buy Now |
|
Microchip Technology
from US$3.15
|
8,900
in stock
|
Buy Now |
|
element14
from US$3.85
|
3,333
in stock
|
Buy Now |
|
Farnell
from US$3.84
|
3,333
in stock
|
Buy Now |
|
Distrelec
from US$4.62
|
993
in stock
|
Buy Now |
|
Future Electronics
from US$3.68
|
593
in stock
|
Buy Now |
|
Newark Electronics
from US$3.38
|
500
in stock
|
Buy Now |
|
Transfer Multisort Elektronik
from US$3.86
|
123
in stock
|
Buy Now |
|
Avnet Silica
-
|
2,600
in stock
|
Buy Now |
|
Avnet America
from US$3.47
|
-
|
Buy Now |
|
|
RS Americas
from US$3.66
|
-
|
Buy Now |
|
EBV Elektronik
-
|
-
|
Buy Now |
Features
| 128K x 8 (1024 Kbit) |
| 128-Byte Page Write Buffer |
| Page Write Time 5 ms Max. |
| Hardware Write-Protect Pin |
| Factory Programming Available |
| Operating voltage 2.5V to 5.5V |
| Read current 450 uA, max. |
| Standby current 5 uA, max. |
| Cascadable up to Four Devices |
| 100 kHz and 400 kHz Clock Compatible |
| Pb-Free and RoHS Compliant |
Specifications
| Density (Organization) | 1024K bits (x8) |
|---|---|
| Operating Voltage Min. (V) | 2.5 |
| Oper Voltage Max (V) | 5.5 |
| Max. Clock Freq. | 400 kHz |
| Page Size (bytes) | 128 |
| Write Protected | False |
| Write Protect Scheme | Full Array |
| Endurance | 1,000,000 |
| Data Retention (Years) | 200 |
| Pins | Packaging | 8 | SOIC |
| Temp Range | -40C to +85C |
| Packing Media | Tube (100) |
Resources
Board Design Files |
|---|
| Verilog Model - 24xx1026 Devices |
Brochures |
|---|
| Serial EEPROM - Automotive Brochure |
| Corporate Product Selector Guide |
| MPLAB® X IDE Product Overview |
| Memory Products Brochure |
Environmental Information
| JEDEC Indicator | e3 |
|---|---|
| ROHS | Compliant |
| China EFUP | Compliant |
| Device Weight (g) | 0.078 |
| Shipping Weight (kg) | 0.25 |
| Lead Count | 8 |
| Package Type | SOIC |
| Package Width or Size | .150In(3.90mm) |
| Soldering Composition | Matte Tin |
Alternative Descriptions
| 1M, 2.5V EE, A0 on top die bonded to Vdd, A0 on bottom die is NC | Microchip Technology |
| SERIAL EEPROM, 1MBIT, 400KHZ, SOIC-8 | element14 |
| Microchip EEPROM I²C 1MB 400kHz 900ns NSOIC | Distrelec |
| 24LC1026 Series 1 Mbit (128K x 8) 5.5 V SMT I2C™ CMOS Serial EEPROM - SOIC-8 | Future Electronics |
| 1024K, 128K X 8, 2.5V Ser Ee, 128 Byte Page 8 Soic 3.90Mm(.150In) Tube Rohs Compliant: Yes |Microchip 24LC1026-I/SN | Newark Electronics |
| IC: EEPROM memory | Transfer Multisort Elektronik |
| 1024K 128K X 8 2.5V SER EE, 128 B PAGE | RS |
| EEPROM Serial-I2C 1M-bit 128K x 8 3.3V/5V 8-Pin SOIC N Tube | Avnet Silica |
| IC, Memory, Type, Serial EEPROM,1Mbit (128Kx8),400KHz, SOIC-8 | Microchip Technology Inc. 24LC1026-I/SN | RS Americas |
