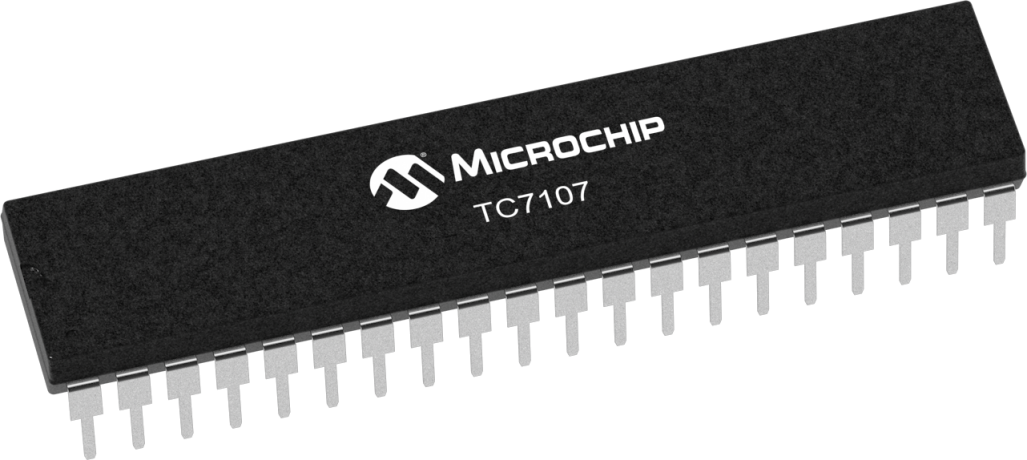

TC7107CPL Data & Signal Conversion by Microchip Technology

3-1/2 Digit Analog-to-Digital Converter

Status: Active
Series: TC7107
RoHS: Compliant
View Datasheet Manufacturer Site View Pricing & Stock

The TC7107 3½ digit LED direct-display drive analog-to-digital converter has a reference with an 80ppm/°C max temperature coefficient. TC7107 based systems may be upgraded without changing external passive component values to the TC7107A for a more precise system. The TC7107 drives common anode light emitting diode (LED) displays directly with 8mA per segment. A low-cost, high-resolution indicating meter requires only a display, four resistors, and four capacitors. High impedance differential inputs offer 1pA leakage current and a 1012 Ohm input impedance. The differential reference input allows ratiometric measurements for ohms or bridge transducer measurements. The 15µVp-p noise performance guarantees a great reading. The auto-zero cycle guarantees a zero display reading with a zero-volts input.
Exclusive Discount Available | Get off orders of when using code at the Farnell checkout.
Distributor Stock
Logo for element14 element14
634 units
Buy Now
Logo for Newark Electronics Newark Electronics
634 units
Buy Now
Logo for Microchip Technology Microchip Technology
80 units
Buy Now
Logo for Avnet America Avnet America
No stock
Buy Now
Logo for Avnet Europe Avnet Europe
No stock
Buy Now
Logo for Arrow Electronics Arrow Electronics
No stock
Buy Now
Logo for Allied Electronics Allied Electronics
No stock
Buy Now
View Full Pricing & Stock Comparison

Features

80ppm/°C Typical
Drives LED Display Directly
Guaranteed Zero Reading with Zero Input
Low Noise for Stable Display
Auto-Zero Cycle Eliminates Need for Zero Adjustment
True Polarity Indication for Precision Null Applications
High Impedance CMOS Differential Inputs: 1012 Ohm
Differential Reference Inputs Simplify Ratiometric Measurements
Low Power Operation: 10mW

Specifications

Hold Yes
DMM No
Resolution Digits 3.5
Resolution Counts 2000
Temp Range Min -25
Temp Range Max 85
Pins | Packaging 40 | PDIP
Temp Range 0C to +70C
Packing Media Tube (10)

Environmental Information

JEDEC Indicator e3
ROHS Compliant
China EFUP Compliant
Device Weight (g) 6.5
Shipping Weight (kg) 10.6
Lead Count 40
Package Type PDIP
Package Width or Size .600in
Soldering Composition Matte Tin
