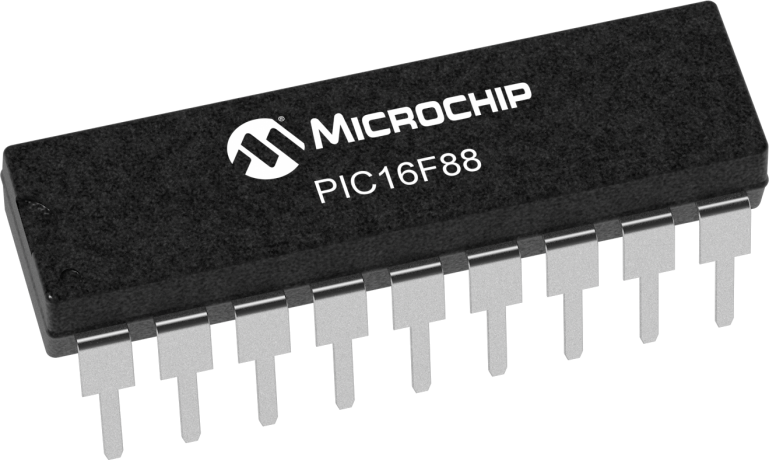

PIC16F88-I/P Microcontrollers - MCU by Microchip Technology

Status: Active
Series: PIC16F88
RoHS: Compliant
Download Datasheet Visit Manufacturer Site View Pricing & Stock

This powerful (200 nanosecond instruction execution) yet easy–to-program (only 35 single word instructions) CMOS Flash-based 8-bit microcontroller packs Microchip’s powerful PIC® architecture into an 18-pin package and is upwards compatible with the PIC16C7x, PIC16C62xA, PIC16C5X and PIC12CXXX devices. The PIC16F88 features 8 MHz internal oscillator, 256 bytes of EEPROM data memory, a capture/compare/PWM, an Addressable USART, a synchronous serial port that can be configured as either 3-wire Serial Peripheral Interface (SPI™) or the 2-wire Inter-Integrated Circuit (I²C™) bus, 7 channels of 10-bit Analog-to-Digital (A/D) converter and 2 Comparators that make it ideal for advantage analog / integrated level applications in automotive, industrial, appliances and consumer applications.

Where to Buy

Prices starting from US$3.18

Distributor Stock
Logo for Distrelec
from US$5.11
in stock
Buy Now
Logo for element14
from US$4.60
in stock
Buy Now
Logo for Schukat Electronic
Schukat Electronic
from US$3.84
in stock
Buy Now
Logo for Chip One Stop
Chip One Stop
from US$4.19
in stock
Buy Now
Logo for EBV Elektronik
EBV Elektronik
in stock
Buy Now
Logo for Future Electronics
Future Electronics
from US$4.28
Buy Now
Logo for Avnet America
Avnet America
from US$3.81
Buy Now
Logo for Microchip Technology
Microchip Technology
from US$3.18
Buy Now
Logo for Avnet Silica
Avnet Silica
Buy Now


1 PWM 10-bit 8 MHz Internal Oscillator ICD 256 bytes of EEPROM data memory Capture/Compare


Program Memory Type Flash
Program Memory Size (KB) 7
Data EEPROM (bytes) 256
Capture/Compare/PWM (CCP) 1
Max 8 Bit Digital Timers 2
Number of ADCs 1
ADC Channels 7
Max ADC Resolution (bits) 10
Number of Comparators 2
Temp. Range Min. -40
Temp. Range Max. 125
Operation Voltage Max.(V) 5.5
Operation Voltage Min.(V) 2
Pin Count 18
Low Power No
Pins | Packaging 18 | PDIP
Temp Range -40C to +85C
Packing Media Tube (25)


Reference Manuals
Cover Page and TOC - PICmicro Mid-Range MCU Family
Introduction - PICmicro Mid-Range MCU Family
Oscillator - PICmicro Mid-Range MCU Family
Reset - PICmicro Mid-Range MCU Family
Architecture - PICmicro Mid-Range MCU Family
CPU and ALU - PICmicro Mid-Range MCU Family
Data EEPROM - PICmicro Mid-Range MCU Family
Interrupts - PICmicro Mid-Range MCU Family
I/O Ports
Parallel Slave Port - PICmicro Mid-Range MCU Family
Timer0 - PICmicro Mid-Range MCU Family
Timer2 - PICmicro Mid-Range MCU Family
Compare/Capture/PWM (CCP) - PICmicro Mid-Range MCU Family
Synchronous Serial Port (SSP) - PICmicro Mid-Range MCU Family
Basic Synchronous Serial Port (BSSP) - PICmicro Mid-Range MCU Family
USART - PICmicro Mid-Range MCU Family
Voltage Reference - PICmicro Mid-Range MCU Family
Comparator - PICmicro Mid-Range MCU Family
8-Bit A/D Converter - PICmicro Mid-Range MCU Family
10-bit A/D Converter (Mid-Range)
Slope A/D - PICmicro Mid-Range MCU Family
LCD - PICmicro Mid-Range MCU Family
Watchdog Timer and Sleep Mode - PICmicro Mid-Range MCU Family
Device Configuration Bits - PICmicro Mid-Range MCU Family
In-Circuit Serial Programming - PICmicro Mid-Range MCU Family
Instruction Set - PICmicro Mid-Range MCU Family
Electrical Specifications - PICmicro Mid-Range MCU Family

Environmental Information

JEDEC Indicator e3
ROHS Compliant
China EFUP Compliant
Device Weight (g) 1.248
Shipping Weight (kg) 2.2
Lead Count 18
Package Type PDIP
Package Width or Size .300in
Soldering Composition Matte Tin

Alternative Descriptions

MCU, 8BIT, PIC16, 20MHZ, DIP-18 | element14
Microchip Microcontroller PIC16 20MHz 7KB / 368B PDIP 8bit | Distrelec
4Kx14 Flash 16I/O 20MHz DIP18 | Schukat Electronic
MCU 8-bit PIC16 PIC RISC 7KB Flash 5V 18-Pin PDIP Tube | EBV Elektronik
PIC16F Series 7 kB Flash 368 B RAM 20 MHz 8-Bit Microcontroller - PDIP-18 | Future Electronics
MCU CMOS 18LD 20MHZ 4K FLASH | Microchip Technology

Frequently Asked Questions

Where can I find additional details, specifications and documents for a PIC16F88-I/P?

Additional datasheets, footprints and schematics for PIC16F88-I/P are listed on our Part Details page. You can also find images and similar parts to PIC16F88-I/P on this page.

What pricing and inventory information can I view?

Distributor pricing and stock information is available for PIC16F88-I/P on our Product Comparison page. Access via the 'View Pricing & Stock' button to view PIC16F88-I/P price breaks, MOQs, lead times, inventory and SKUs from distributors.

What category does PIC16F88-I/P fall under?

The PIC16F88-I/P is listed under Semiconductors - ICs > Microcontrollers - MCU > 8 Bit Microcontrollers - MCU.

Can I view similar or alternative parts?

You can view similar parts to PIC16F88-I/P when available in the 8 Bit Microcontrollers - MCU range under the specifications section at the bottom of the details page.

Who can I contact for technical support of the product?

Submit any questions directly to the customer support team of the distributor listing the product. For the PIC16F88-I/P you can contact the distributor directly for product support, shipping queries etc.

Is the PIC16F88-I/P RoHS compliant?

Yes. This part has been flagged as RoHS Compliant by Microchip Technology.

Which authorised distributors for PIC16F88-I/P have stock available?

Authorised distributors including element14, Distrelec, Schukat Electronic, Chip One Stop and EBV Elektronik have stock available or on a lead time for PIC16F88-I/P.

How do I check stock and lead times for all distributors?

Stock availability and lead times will be displayed for PIC16F88-I/P often in real-time on the comparison pages.
