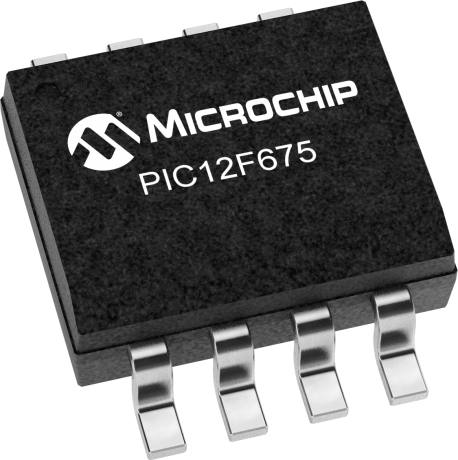

PIC12F675-I/SN Microcontrollers - MCU by Microchip Technology
Newer Device Available PIC16F18313
| Status: | Active |
|---|---|
| Series: | PIC12F675 |
| RoHS: | Compliant |
Where to Buy
Prices starting from US$1.01
| Distributor | Stock | ||
|---|---|---|---|
|
RS
from US$1.42
|
665
in stock
|
Buy Now |
|
Microchip Technology
from US$1.01
|
101,541
in stock
|
Buy Now |
|
Future Electronics
from US$1.35
|
35,774
in stock
|
Buy Now |
|
Chip One Stop
from US$1.14
|
4,475
in stock
|
Buy Now |
|
element14
from US$1.39
|
4,424
in stock
|
Buy Now |
|
Farnell
from US$1.41
|
4,424
in stock
|
Buy Now |
|
Schukat Electronic
from US$1.02
|
805
in stock
|
Buy Now |
|
CoreStaff
from US$1.84
|
500
in stock
|
Buy Now |
|
Micros
from US$1.47
|
479
in stock
|
Buy Now |
|
Newark Electronics
from US$1.40
|
400
in stock
|
Buy Now |
|
Avnet America
from US$1.28
|
400
in stock
|
Buy Now |
|
Rapid Electronics
from US$2.03
|
285
in stock
|
Buy Now |
|
Transfer Multisort Elektronik
from US$1.45
|
16
in stock
|
Buy Now |
|
Avnet Silica
-
|
2,100
in stock
|
Buy Now |
|
EBV Elektronik
-
|
600
in stock
|
Buy Now |
Features
| 128 bytes of EEPROM data memory |
| Programmable pull-up resistors |
| 4 oscillator selections including 4 MHz RC oscillator with programmable calibration and Power-On Reset. |
Specifications
| Program Memory Type | Flash |
|---|---|
| Program Memory Size (KB) | 1.75 |
| CPU Speed (MIPS/DMIPS) | 5 |
| Data EEPROM (bytes) | 128 |
| Capture/Compare/PWM (CCP) | 0 |
| Max 8 Bit Digital Timers | 1 |
| Number of ADCs | 1 |
| ADC Channels | 4 |
| Max ADC Resolution (bits) | 10 |
| Number of Comparators | 1 |
| Temp. Range Min. | -40 |
| Temp. Range Max. | 125 |
| Operation Voltage Max.(V) | 5.5 |
| Operation Voltage Min.(V) | 2 |
| Pin Count | 8 |
| Low Power | No |
| Pins | Packaging | 8 | SOIC |
| Temp Range | -40C to +85C |
| Packing Media | Tube (100) |
Resources
Data Sheets |
|---|
| PIC12F629/675 Data Sheet |
Errata |
|---|
| PIC12F629/675 Family Silicon Errata and Data Sheet Clarification |
| Timer1 Module Data Sheet Errata |
Legacy Collaterals |
|---|
| AN1229 - Class B Safety Software Library for PIC MCUs and dsPIC DSCs |
Miscellaneous |
|---|
| PIC12F629/675 Microcontroller Family Product Information |
Programming Specifications |
|---|
| PIC12F629/675/PIC16F630/676 EEPROM Memory Programming Specification |
Supporting Collateral |
|---|
| Tips 'n Tricks |
| PIC® MCU CCP and ECCP Tips n Tricks |
| PIC MCU Comparator Tips n Tricks |
| PIC Microcontroller Compiled Tips 'n Tricks Guide |
Environmental Information
| JEDEC Indicator | e3 |
|---|---|
| ROHS | Compliant |
| China EFUP | Compliant |
| Device Weight (g) | 0.078 |
| Shipping Weight (kg) | 0.25 |
| Lead Count | 8 |
| Package Type | SOIC |
| Package Width or Size | .150In(3.90mm) |
| Soldering Composition | Matte Tin |
Alternative Descriptions
| MCU CMOS 8 LD 1K FLASH | Microchip Technology |
| PIC12F Series 1.75 kB Flash 64 B SRAM SMT 8-Bit Microcontroller - SOIC-8 | Future Electronics |
| MCU, 8BIT, PIC12, 20MHZ, SOIC-8 | element14 |
| 1Kx14 Flash 6I/O 20MHz SO8 150mil | Schukat Electronic |
| 8bit microcontroller,PIC12F675-I/SN | RS |
| 8-bit MCU | Micros |
| 1.75 Kb Flash, 64 Ram, 6 I/O Rohs Compliant: Yes |Microchip PIC12F675-I/SN | Newark Electronics |
| MCU 8-Bit PIC12 PIC RISC 1.75KB Flash 2.5V/3.3V/5V 8-Pin SOIC N Tube | Avnet America |
| Microchip PIC12F675-I/SN Microcontroller SMD 8-bit SOIC8 | Rapid Electronics |
| IC: PIC microcontroller | Transfer Multisort Elektronik |
