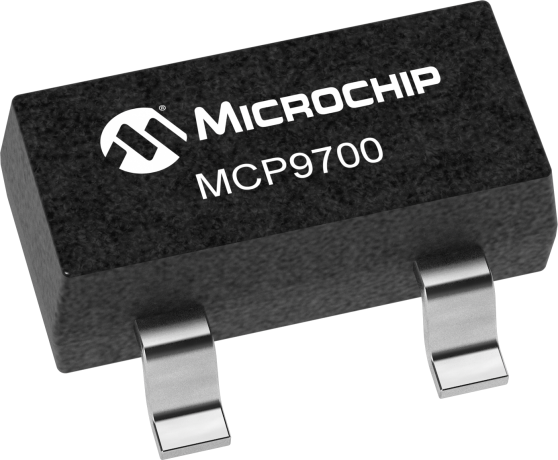

MCP9700T-E/TT IC Sensors by Microchip Technology

Low-Power Linear Active Thermistor IC

Status: Active
Series: MCP9700
RoHS: Compliant
Download Datasheet Visit Manufacturer Site View Pricing & Stock

Linear Active Thermistor™ ICs are sensors whose output voltage is directly proportional to measured temperature. The MCP9700 can accurately measure temperature from -40C to +150C. The output of the MCP9700 is calibrated to a slope of 10mV/°C and has a DC offset of 500mV. The offset allows reading negative temperatures without the need for a negative supply. The MCP9700 is packaged in space saving 5-pin SC-70 packages, making it ideal for space-critical and low-cost applications.

Where to Buy

Prices starting from US$0.19

Distributor Stock
Logo for RS
RS
from US$0.22
2,160
in stock
Buy Now
Logo for Microchip Technology
Microchip Technology
from US$0.21
1,145,391
in stock
Buy Now
Logo for Future Electronics
Future Electronics
from US$0.24
66,000
in stock
Buy Now
Logo for Newark Electronics
Newark Electronics
from US$0.24
37,431
in stock
Buy Now
Logo for element14
element14
from US$0.23
37,431
in stock
Buy Now
Logo for Farnell
Farnell
from US$0.22
37,431
in stock
Buy Now
Logo for Chip One Stop
Chip One Stop
from US$0.19
32,848
in stock
Buy Now
Logo for Distrelec
Distrelec
from US$0.32
975
in stock
Buy Now
Logo for EBV Elektronik
EBV Elektronik
-
24,000
in stock
Buy Now
Logo for Avnet Silica
Avnet Silica
-
6,000
in stock
Buy Now
Logo for Avnet America
Avnet America
from US$0.30
-
Buy Now
Logo for RS Americas
RS Americas
from US$0.48
-
Buy Now

Features

Linear Temperature Slope: 10mV/°C
±4°C Accuracy from 0°C to +70°C
-4°C/+6°C Accuracy from -40°C to +150°C
Very low Operating Current: 12µA (max)
Operates from 2.3V to 5.5V
No external Components Required
Space-saving SC-70 Package
AEC-Q100 Qualified Grade 0

Specifications

Pins | Packaging 3 | SOT-23
Temp Range -40C to +125C
Packing Media Tape and reel (3000)

Environmental Information

JEDEC Indicator e3
ROHS Compliant
China EFUP Compliant
Device Weight (g) 0.0083
Shipping Weight (kg) 0.039
Lead Count 3
Package Type SOT-23
Package Width or Size 1.3mm
Soldering Composition Matte Tin

Alternative Descriptions

LENEAR ACTIVE THERMISTER 9TM) IC(10MV/OC) | Microchip Technology
MCP9700 Series 5 V -40 to +125░C Low-Power Linear Active Thermistor | Future Electronics
Temperature Sensor Ic, Voltage, 4 C, 0 C, 70 C, Sot-23, 3 Rohs Compliant: Yes |Microchip MCP9700T-E/TT | Newark Electronics
IC, THERMAL SENSOR, 2.3V, SOT23-3 | element14
Linear Active Thermistor 10mV/C SOT23 | RS
Microchip Linear Active Thermistor IC -40 ... 125°C SOT-23-3 | Distrelec
Temp Sensor Analog 3-Pin SOT-23 T/R | EBV Elektronik
Microchip MCP9700T-E/TT Temperature Sensor 3-Pin SOT-23, -40 - +125 degC | Microchip Technology Inc. MCP9700T-E/TT | RS Americas


Frequently Asked Questions

Where can I find additional details, specifications and documents for a MCP9700T-E/TT?

Additional datasheets, footprints and schematics for MCP9700T-E/TT are listed on our Part Details page. You can also find images and similar parts to MCP9700T-E/TT on this page.

What pricing and inventory information can I view?

Distributor pricing and stock information is available for MCP9700T-E/TT on our Product Comparison page. Access via the 'View Pricing & Stock' button to view MCP9700T-E/TT price breaks, MOQs, lead times, inventory and SKUs from distributors.

What category does MCP9700T-E/TT fall under?

The MCP9700T-E/TT is listed under Semiconductors - ICs > IC Sensors > IC Temperature Sensors.

Can I view similar or alternative parts?

You can view similar parts to MCP9700T-E/TT when available in the IC Temperature Sensors range under the specifications section at the bottom of the details page.

Who can I contact for technical support of the product?

Submit any questions directly to the customer support team of the distributor listing the product. For the MCP9700T-E/TT you can contact the distributor directly for product support, shipping queries etc.

Is the MCP9700T-E/TT RoHS compliant?

Yes. This part has been flagged as RoHS Compliant by Microchip Technology.

Which authorised distributors for MCP9700T-E/TT have stock available?

Authorised distributors including Microchip Technology, Future Electronics, Newark Electronics, element14 and Farnell have stock available or on a lead time for MCP9700T-E/TT.

How do I check stock and lead times for all distributors?

Stock availability and lead times will be displayed for MCP9700T-E/TT often in real-time on the comparison pages.

What if I can't find stock of MCP9700T-E/TT?

You can fill out our help required form which you can use to request a quote for MCP9700T-E/TT from some of our verified obsolescence suppliers. Alternatively, contact us via our web chat in the bottom left of your screen and one of our team will try to help.
