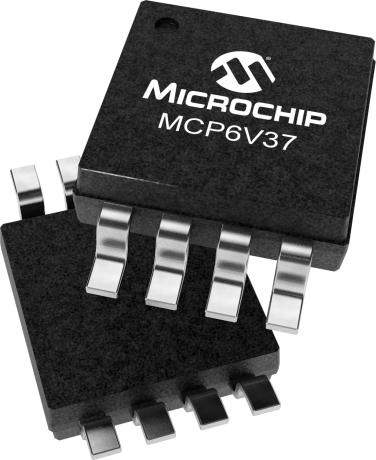

MCP6V37-E/MS by Microchip Technology
23 µA, 300 kHz Zero-Drift Op Amps
| Status: | Active |
|---|---|
| Series: | MCP6V37 |
| RoHS: | Compliant |
Where to Buy
Prices starting from US$1.15
| Distributor | Stock | ||
|---|---|---|---|
|
RS
from US$1.87
|
5
in stock
|
Buy Now |
|
Microchip Technology
from US$1.28
|
8,472
in stock
|
Buy Now |
|
Newark Electronics
from US$1.40
|
150
in stock
|
Buy Now |
|
Avnet America
from US$1.31
|
150
in stock
|
Buy Now |
|
Future Electronics
from US$1.15
|
25
in stock
|
Buy Now |
|
TME
from US$1.40
|
-
|
Buy Now |
|
element14
from US$1.44
|
-
|
Buy Now |
|
Farnell
from US$1.40
|
-
|
Buy Now |
| Buy Now |
Features
| Zero-Drift architecture |
| Maximum offset of only 25 uV |
| Maximum offset drift of only 150 nV/C |
| No 1/f noise |
| Less than 38 uW of power consumption with 300 kHz bandwidth |
| Small MSOP and 2x3 TDFN packaging |
Specifications
| # Per Package | 2 |
|---|---|
| GBWP (kHz) | 300 |
| VOS Max. (uV) | 25 |
| Supply Voltage Min. (V) | 1.8 |
| Supply Voltage Max. (V) | 5.5 |
| Iq Typical (µA) | 21 |
| Iq Max (uA) | 34 |
| Input Voltage Noise Density (nV/rt(Hz)) | 50 |
| PSRR Min (dB) | 110 |
| CMRR Min (dB) | 110 |
| Operating Temperature Range (°C) | -40 to 125 |
| Ib (pA) | 5 |
| PM (deg) | 70 |
| Isc (mA) | 21 |
| Slew Rate (V/µs) | 0.13 |
| Pins | Packaging | 8 | MSOP |
| Temp Range | -40C to +125C |
| Packing Media | Tube (100) |
Last 6 months Inventory & Pricing History
Resources
Data Sheets |
|---|
| MCP6V36/6U/7/9 Data Sheet |
Board Design Files |
|---|
| SPICE Model for MCP6V36/6U/7/9 Devices |
Environmental Information
| JEDEC Indicator | e3 |
|---|---|
| ROHS | Compliant |
| China EFUP | Compliant |
| Device Weight (g) | 0.0256 |
| Shipping Weight (kg) | 0.07 |
| Lead Count | 8 |
| Package Type | MSOP |
| Package Width or Size | 3x3mm |
| Soldering Composition | Matte Tin |
Alternative Descriptions
| Dual and Quad 300kHz Reduced Test Zero Drift Op Amp | Microchip Technology |
| Msop Dual, Zero-Drift Op Amp, E Temp Rohs Compliant: Yes |Microchip MCP6V37-E/MS | Newark Electronics |
| OP Amp Dual 0.13V/us@1.8V to 5.5V 1.8V to 5.5V 8-Pin MSOP Tube | Avnet America |
| MCP6V37 Series 5.5 V 0.13V/µs 21 µA 300 kHz Zero-Drift Op Amps - MSOP-8 | Future Electronics |
| Microchip, MCP6V37-E/MS | RS |
| IC: operational amplifier | TME |
| OPAMP, 300KHZ, -40 TO 125DEG C | element14 |
