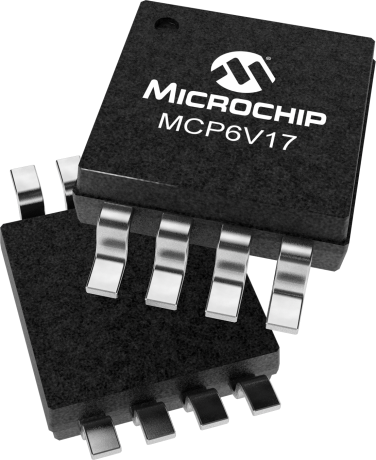

MCP6V17-E/MS by Microchip Technology

7.5 µA, 80 kHz Zero-Drift Op Amps

Status: Active
Series: MCP6V17
RoHS: Compliant
View Datasheet Manufacturer Site View Pricing & Stock

The MCP6V16/7/9 family of operational amplifiers provides input offset voltage correction for very low offset and offset drift. These are low power devices, with a gain bandwidth product of 80 kHz. They are unity gain stable, have no 1/f noise, and provide superior CMRR and PSRR performance. These products operate with a single supply voltage as low as 1.6V with a maximum quiescent current of only 11 uA.

Prices starting from US$0.72

Distributor Starting From Stock
Logo for Microchip Technology Microchip Technology US$1.30
Buy Now
Logo for Chip One Stop Chip One Stop US$0.72
Buy Now
Logo for Farnell Farnell US$1.37
Buy Now
Logo for Newark Electronics Newark Electronics US$1.36
Buy Now
Logo for Future Electronics Future Electronics US$1.63
Buy Now
Logo for Avnet America Avnet America US$1.74
Buy Now
Logo for element14 element14 US$1.44
Buy Now
Logo for EBV Elektronik EBV Elektronik -
Buy Now
View Full Pricing & Stock Comparison


Zero-Drift architecture
Maximum offset of only 25 uV
Maximum offset drift of 150 nV/C
No 1/f noise
Power consumption as low as 10.4 uW per channel
Small MSOP and 2x3 DFN packaging


# Per Package 2
GBWP (kHz) 80
VOS Max. (uV) 25
Supply Voltage Min. (V) 1.6
Supply Voltage Max. (V) 5.5
Iq Typical (µA) 6.5
Iq Max (uA) 11
Input Voltage Noise Density (nV/rt(Hz)) 102
PSRR Min (dB) 108
CMRR Min (dB) 109
Operating Temperature Range (°C) -40 to 125
Ib (pA) 5
PM (deg) 70
Isc (mA) 17
Slew Rate (V/µs) 0.03
Pins | Packaging 8 | MSOP
Temp Range -40C to +125C
Packing Media Tube (100)

Environmental Information

JEDEC Indicator e3
ROHS Compliant
China EFUP Compliant
Device Weight (g) 0.0256
Shipping Weight (kg) 0.07
Lead Count 8
Package Type MSOP
Package Width or Size 3x3mm
Soldering Composition Matte Tin

Alternative Descriptions

Dual and Quad 80kHz Reduced Test Zero Drift Op Amp | Microchip Technology
Microchip, MCP6V17-E/MS | RS
OPAMP, 80MHZ, -40 TO 125DEG C | Farnell
Opamp, 80Mhz, -40 To 125Deg C | Newark Electronics
MCP6V17 Series 5.5 V 0.03V/╡s 6.5 ╡A 80 kHz Zero-Drift Op Amps - MSOP-8 | Future Electronics
OP Amp Dual 0.03V/us@1.6V to 5.5V 1.6V to 5.5V 8-Pin MSOP T/R | Avnet America
