THS4130EVM Part Information

Details for THS4130EVM by Texas Instruments

Education Maker & Hobbyist Electronics > Development Boards & Evaluation Kits > Signal Conditioning Development Kits

Buy THS4130EVM Directly from Texas Instruments (40 in stock) at $49.0000
Buy Direct

Part Downloads

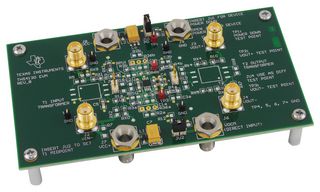

THS4130EVM image

Part Features

  • Differential-Input/Differential-Output u2013 Balanced Outputs Reject Common-Mode Noise u2013 Reduced Second-Harmonic Distortion Due to Differential Output
  • High Performance u2013 150 MHz, u20133 dB Bandwidth (VCC = u00b115 V) u2013 51 V/u00b5s Slew Rate u2013 u2013100 dB Third Harmonic Distortion at 250 kHz
  • ICC(SD) = 860 u00b5A in Shutdown Mode (THS4130)
  • Low Noise u2013 1.3 nV/u221aHz Input-Referred Noise
  • Wide Power-Supply Range u2013 VCC = 5 V Single Supply to u00b115 V Dual Supply

Part Specifications

Silicon Manufacturer Texas Instruments
Silicon Core Number THS4130
Kit Application Type Amplifier
Application Sub Type Differential Amplifier
Kit Contents Evaluation Board THS4130

Alternative Part Descriptions

  • THS4130EVM Evaluation Module | Texas Instruments
