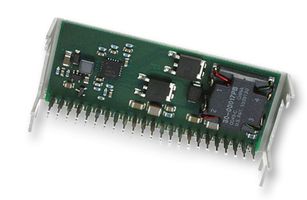

PT6938N Batteries & Power Supplies by Texas Instruments
IC SWITCHING REGULATOR
| Status: | Unknown |
|---|---|
| Series: | - |
| RoHS: | Unknown |
No distributors results available
Specifications
| No. of Outputs | 2 Output, 2Outputs |
|---|---|
| Output Power Max | - |
| Output Voltage Nom. | 3.3V |
| Output Current Max | 8.6A |
| DC / DC Converter Output Type | Fixed |
| DC / DC Converter Mounting | Through Hole |
| Input Voltage DC Min | 4.5V |
| Input Voltage DC Max | 5.5V |
| DC / DC Converter Type | SIP |
| Depth | - |
| Width | - |
| Height | - |
| Product Range | - |
| SVHC | No SVHC (27-Jun-2018) |
| Adjustable Output Voltage Max | 3.6V |
| Adjustable Output Voltage Min | 2.5V |
| Approval Bodies | UL |
| Approvals & Standards | UL |
| Frequency | 350kHz |
| Input Voltage Max | 5.5V |
| No. of Pins | 23Pins |
| Operating Temperature Max | 85°C |
| Operating Temperature Min | -40°C |
| Operating Temperature Range | -40°C to +85°C |
| Output Current | 8.6A |
| Output Current - Output 2 | 8.6A |
| Output Voltage | 3.3V |
| Output Voltage - Output 2 | 1.2V |
| Output Voltage Max | 3.3V |
| Supply Voltage | 5V |
| Supply Voltage Max | 5.5V |
| Supply Voltage Min | 4.5V |
| Voltage Regulator Type | Dual Adjustable Positive |
