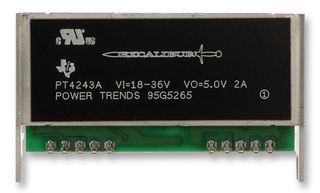

PT4243A Part Information

Details for PT4243A by Texas Instruments

Electrical & Lighting>Batteries & Power Supplies>Power Supplies

Part Specifications

No. of Outputs 1 Output, 1Outputs
Output Power Max 10W
Output Voltage - Output 1 5V
Output Current - Output 1 2A
Output Voltage - Output 2 -
Output Current - Output 2 -
Output Voltage - Output 3 -
Output Current - Output 3 -
Product Range -
Input Voltage DC Min -
Input Voltage DC Max 24V
DC / DC Converter Output Type Fixed
DC / DC Converter Type SIP
DC / DC Converter Mounting Through Hole
Width -
Height -
Depth -
SVHC No SVHC (27-Jun-2018)
Accuracy % 2%
Approvals & Standards CSA UL
Base Number 4243
Frequency 300kHz
No. of Pins 10Pins
Operating Temperature Max 85°C
Operating Temperature Min -40°C
Operating Temperature Range -40°C to +85°C
Output Voltage Max 5V
Power Rating 10W
Primary Input Voltage 24V
Supply Voltage Max 36VDC
Supply Voltage Min 18VDC
Voltage Regulator Type Isolated Converter
RoHS Compliant

Frequently Asked Questions

Where can I find additional details, specifications and documents for a PT4243A?

Additional datasheets, footprints and schematics for PT4243A are listed in our Part Details tab. You can also find the PT4243A image and similar parts on this details page.

What pricing and inventory information can I view?

Distributor pricing and stock information is available for PT4243A in the Pricing & Inventory tab next to part details. You can view PT4243A price breaks, MOQs, lead times, inventory and SKUs from distributors.

What category does PT4243A fall under?

The PT4243A is listed under Electrical & Lighting > Batteries & Power Supplies > Power Supplies.

Can I view similar or alternative parts?

You can view similar parts to PT4243A when available in the Power Supplies range under the specifications section at the bottom of the details page.

Who can I contact for technical support of the product?

Submit any questions directly to the customer support team of the distributor listing the product. For the PT4243A you can contact the distributor directly for product support, shipping queries etc.

Is the PT4243A RoHS compliant?

Yes. This part has been flagged as RoHS Compliant by Farnell.

Which authorised distributors for PT4243A have stock available?

There is no stock from authorised distributors for PT4243A.

How do I check stock and lead times for all distributors?

Stock availability and lead times will be displayed for PT4243A often in real-time on the comparison pages.

What if I can't find stock of PT4243A?

You can fill out our help required form which you can use to request a quote for PT4243A from some of our verified obsolescence suppliers. Alternatively, contact us via our web chat in the bottom left of your screen and one of our team will try to help.
