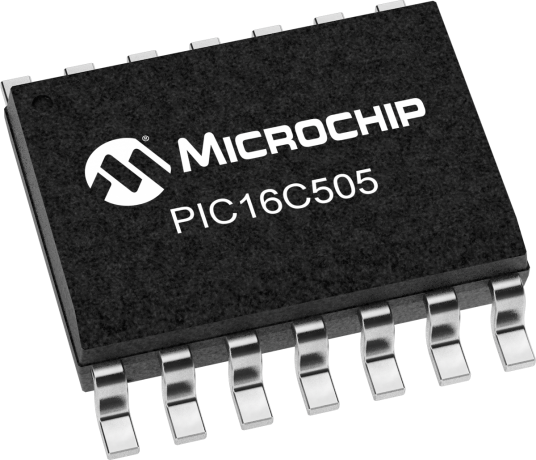

PIC16C505-20I/SL PIC16C505 by Microchip Technology


Status: Unknown
Series: -
RoHS: Unknown
View Datasheet Manufacturer Site View Pricing & Stock

This powerful (200 nanosecond instruction execution) yet easy-to-program (only 33 single word instructions) CMOS ROM-based 8-bit microcontroller packs Microchip’s powerful PIC® architecture into a 14-pin package. Easily adapted for applications ranging from personal care appliances and security systems to low power remote transmitters/receivers.
Distributor Price Stock
Logo for Avnet America Avnet America US$1.73
Buy Now
Logo for EBV Elektronik EBV Elektronik -
Buy Now
Logo for Avnet Silica Avnet Silica -
Buy Now
Logo for Future Electronics Future Electronics US$2.26
Buy Now
Logo for Microchip Technology Microchip Technology US$1.76
Buy Now
Logo for RS Americas RS Americas US$2.71
Buy Now
Logo for Newark Electronics Newark Electronics US$2.04
Buy Now
View Full Pricing & Stock Comparison


12 I/O pins with 25mA source/sink per I/O, 4 oscillator selections including 4 MHz RC oscillator with programmable calibration and Power-on Reset.


Family Baseline 8-Bit
Part Family PIC12C5xx
Part Prefix PIC16C
Architecture 8
Core 8-bit PIC MCU
MaxSpeed (MHz) 20
CPU Type 8-bit PIC MCU
Program Memory Type OTP
Program Memory Size (KB) 1.5
Program Memory Size (KWords) 1
Secure Bootloader (CodeGuard™ Security) None
RAM (KB) 72
Temp. Range Min. -40
Temp. Range Max. 85
Operation Voltage Min.(V) 2.5
Operation Voltage Max.(V) 5.5
Max I/O Pins 12
Pin Count 14
Brown Out Reset (BOR) None
Low Voltage Detection (LVD) None
Internal Oscillator 4 MHz
Max ADC Sample/Hold (S/H) 1
Max 8 Bit Digital Timers 1
Watch Dog Timers (WDT) Yes
Timers 1
Output Compare Channels 2
USB Interface None
Type of CAN module None
Ethernet None
Integrated Wireless Frequency None
Wireless Technology None
Debug Interface ICSP
InstructionWord 12
Temperature Range -40C to +85C

Alternative Descriptions

MCU 8-bit PIC16 PIC RISC 1.5KB EPROM 3.3V/5V 14-Pin SOIC N Tube | Avnet America
PIC16C Series 1.5 KB Flash 72 B SRAM SMT 8-Bit Microcontroller - SOIC-14 | Future Electronics
1.5 KB OTP, 72 RAM, 12 I/O14 SOIC .150in TUBE | Microchip Technology Inc. PIC16C505-20I/SL | RS Americas
8BIT CMOS MCU, SMD, 16C505, SOIC14 | Farnell
Mcu, 8Bit, Pic16, 20Mhz, Soic-14 | Newark Electronics
