PIC12F629T-I/SN Part Information

Details for PIC12F629T-I/SN by Microchip Technology

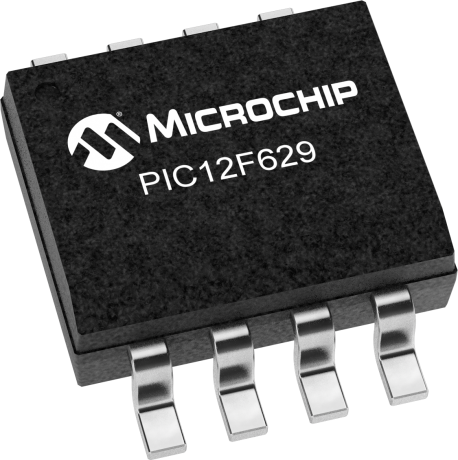

PIC12F629

Featured Distributor

Future Electronics
Future Electronics

PIC12F629TISN

Buy Now
Pricing
BreakPrice
33002.1000
Stock Information
Available in stock: 79200
Additional stock arrives in: 0 weeks
Details
Manufacturer: MICROCHIP

Part Description

This powerful (200 nanosecond instruction execution) yet easy-to-program (only 35 single word instructions) CMOS Flash-based 8-bit microcontroller packs Microchip’s powerful PIC® MCU architecture into an 8-pin package and features 1 channel comparator and 128 bytes of EEPROM data memory. This device is easily adapted for automotive, industrial, appliances and consumer entry-level product applications that require field re-programmability.

Part Downloads

Featured content from Farnell

Part Features

  • 128 bytes of EEPROM data memory
  • Programmable pull-up resistors
  • 4 oscillator selections including 4 MHz RC oscillator with programmable calibration and Power-On Reset

Part Specifications

Family Mid-Range 8-bit
Part Family PIC12F629/675/16F630/676
Part Prefix PIC12F
Architecture 8
Core 8-bit PIC MCU
MaxSpeed (MHz) 20
CPU Type 8-bit PIC MCU
CPU Speed (MIPS/DMIPS) 5
Program Memory Type Flash
Program Memory Size (KB) 1.75
Program Memory Size (KWords) 1
Secure Bootloader (CodeGuard™ Security) None
RAM (KB) 64
Data EEPROM (bytes) 128
Temp. Range Min. -40
Temp. Range Max. 125
Operation Voltage Min.(V) 2
Operation Voltage Max.(V) 5.5
Max I/O Pins 6
Pin Count 8
Brown Out Reset (BOR) BOR
Low Voltage Detection (LVD) None
Power On Reset (POR) Yes
Internal Oscillator 4 MHz
Number of Comparators 1
Max ADC Sample/Hold (S/H) 1
Max 8 Bit Digital Timers 1
Max 16 Bit Digital Timers 1
Watch Dog Timers (WDT) Yes
Timers 2
Output Compare Channels 2
USB Interface None
Type of CAN module None
Ethernet None
Integrated Wireless Frequency None
Wireless Technology None
JTAG None
Debug Interface ICSP
InstructionWord 14
Temperature Range -40C to +85C

Alternative Part Descriptions

  • MCU 8-Bit PIC12 1.75KB Flash SOIC8 | RS Components
  • MICROCONTROLLER MCU, 8 BIT, PIC12, 20MHZ, SOIC-8; Product Range:PIC12 Family PIC12F6xx Series Microcontrollers; CPU Speed:20MHz; Program Memory Size:1.75KB; RAM Memory Size:64Byte; No. of Pins:8Pins; MCU Case Style:SOIC RoHS Compliant: Yes | Newark Electronics
  • PIC12F Series 1.75 kB Flash 64 B SRAM SMT 8-Bit Microcontroller - SOIC-8 | Future Electronics EMEA
  • MCU 8-bit PIC12 PIC RISC 1.75KB Flash 2.5V/3.3V/5V 8-Pin SOIC N T/R | Avnet America
  • MCU CMOS 8 LD 1K FLASH | Microchip Technology Inc
  • 8-Pin, 1.75 KB Flash, 64 RAM, 6 I/O, SOIC | Allied Electronics & Automation
  • MCU 8-bit PIC12 PIC RISC 1.75KB Flash 2.5V/3.3V/5V 8-Pin SOIC N T/R | Avnet Europe
  • MCU 8-bit PIC12 PIC RISC 1.75KB Flash 2.5V/3.3V/5V 8-Pin SOIC N T/R | Avnet Asia
  • 1Kx14 Flash 6I/O 20MHz SO8 150mil | Schukat Electronic
  • Microcontroller [Microchip] PIC12F629T-I/SN Microcontroller | Distrelec
  • PIC12F Series 1.75 kB Flash 64 B SRAM SMT 8-Bit Microcontroller - SOIC-8 | Future Electronics

Frequently Asked Questions

Where can I find additional details, specifications and documents for a PIC12F629T-I/SN?

Additional datasheets, footprints and schematics for PIC12F629T-I/SN are listed in our Part Details tab. You can also find the PIC12F629T-I/SN image and similar parts on this details page.

What pricing and inventory information can I view?

Distributor pricing and stock information is available for PIC12F629T-I/SN in the Pricing & Inventory tab next to part details. You can view PIC12F629T-I/SN price breaks, MOQs, lead times, inventory and SKUs from distributors.

What category does PIC12F629T-I/SN fall under?

The PIC12F629T-I/SN is listed under PIC12F629.

Can I view similar or alternative parts?

You can view similar parts to PIC12F629T-I/SN when available in the PIC12F629 range under the specifications section at the bottom of the details page.

Who can I contact for technical support of the product?

Submit any questions directly to the customer support team of the distributor listing the product. For the PIC12F629T-I/SN you can contact the distributor directly for product support, shipping queries etc.

Is the PIC12F629T-I/SN RoHS compliant?

This part has not been flagged as RoHS Compliant.

Which authorised distributors for PIC12F629T-I/SN have stock available?

Authorised distributors including RS Components, Newark Electronics, Future Electronics EMEA, Avnet America and Microchip Technology Inc have stock available or on a lead time for PIC12F629T-I/SN.

How do I check stock and lead times for all distributors?

Stock availability and lead times will be displayed for PIC12F629T-I/SN often in real-time on the comparison pages.

What if I can't find stock of PIC12F629T-I/SN?

You can fill out our help required form which you can use to request a quote for PIC12F629T-I/SN from some of our verified obsolescence suppliers. Alternatively, contact us via our web chat in the bottom left of your screen and one of our team will try to help.
