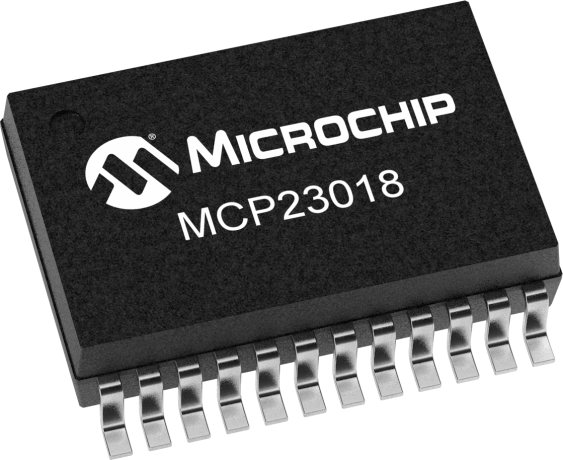

MCP23018-E/SS MCP23018 by Microchip Technology
16-bit Open Drain I/O Expander with I2C Interface
| Status: | Unknown |
|---|---|
| Series: | - |
| RoHS: | Unknown |
Where to Buy
Prices starting from US$1.37
| Distributor | Stock | ||
|---|---|---|---|
|
RS
from US$1.89
|
4,324
in stock
|
Buy Now |
|
Microchip Technology
from US$1.62
|
1,404
in stock
|
Buy Now |
|
Newark Electronics
from US$1.68
|
96
in stock
|
Buy Now |
|
element14
from US$1.88
|
96
in stock
|
Buy Now |
|
Farnell
from US$1.87
|
96
in stock
|
Buy Now |
|
TME
from US$1.84
|
84
in stock
|
Buy Now |
|
Chip One Stop
from US$1.37
|
22
in stock
|
Buy Now |
|
Future Electronics
from US$1.60
|
-
|
Buy Now |
|
Avnet America
from US$1.64
|
-
|
Buy Now |
|
|
RS Americas
from US$2.15
|
-
|
Buy Now |
|
EBV Elektronik
-
|
-
|
Buy Now |
|
Avnet Silica
-
|
-
|
Buy Now |
| Buy Now |
Features
| 16-bit remote bidirectional I/O port |
| Open-drain outputs: |
| 5.5V tolerant |
| 25 mA sink |
| 400 mA total current out |
| Low standby current as low as 1 u00b5A |
| High-speed I2Cu2122 interface upto 3.4MHz |
| Single hardware address pin: Voltage input to allow up to eight devices on the bus |
| Configurable interrupt output pins: Configurable as active-high, active-low or open-drain |
| Low standby current:1 u00b5A (typ.) |
Specifications
| Device Description | 35 |
|---|---|
| Operating Voltage Min. (V) | 1.8 |
| Operating Voltage Max. (V) | 5.5 |
| Temp Range Min | -40 |
| Temp. Range Max. | 125 |
| Interface | 524288 |
| Max. Bus Frequency (kBits/s) | 3400 |
| I/O Pins | 16 |
| Speed | 3.4M |
| HW Address Pins | 1 |
| Interrupt Out Pin | 2 |
| Reset Pin | Yes |
| Edge Detection | Yes |
| Pin Current (mA) | 25 |
| Total Current (mA) | 400 |
| Open Drain Outputs | Yes |
| IO Voltage Tolerant | 5.5 |
| Temperature | E |
| Comments | Open-drain and 5.5V tolerant outputs. |
| Temperature Range | -40C to +125C |
