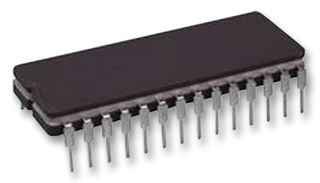

DAC811AH Data & Signal Conversion by Texas Instruments


Status: Unknown
Series: -
RoHS: Unknown
View Datasheet Manufacturer Site View Pricing & Stock

No distributors results available

View Full Pricing & Stock Comparison


Resolution (Bits) 12bit
Sampling Rate 250kSPS
Input Channel Type Parallel
Supply Voltage Range ± 11.4V to ± 16.5V
ADC / DAC Case Style DIP
No. of Pins 28Pins
Data Interface Parallel
Operating Temperature Min -25°C
Operating Temperature Max 85°C
Product Range -
Automotive Qualification Standard -
RoHS Phthalates Compliant Yes
SVHC No SVHC (27-Jun-2018)
A/D / D/A Features D/A
Base Number 811
Conversion Rate 0.25MSPS
IC Case Style DIP
Linearity Error ADC / DAC + 0.5LSB
Linearity Error ADC / DAC - 0.5LSB
No. of Bits 12bit
No. of Channels 1Channels
Operating Temperature Range -25°C to +85°C
Output Type Voltage
Sample Rate 250kSPS
Settling Time 3µs
Supply Current -23mA
Supply Voltage Max 16.5V
Supply Voltage Min 4.5V
Supply Voltage Range - Digital 4.5V to 5.5V

Alternative Descriptions

DAC 1-CH R-2R 12-bit 28-Pin SBCDIP Tube | Avnet America
