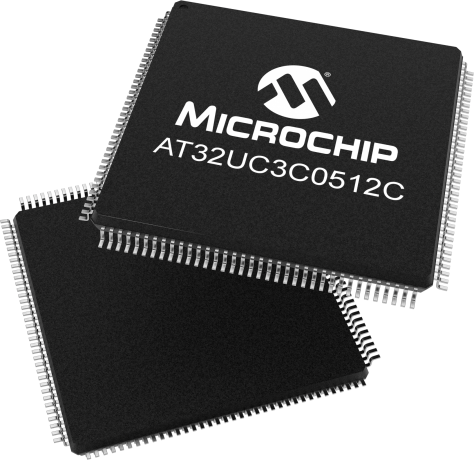

AT32UC3C0512C-ALUR More Semiconductors - ICs by Microchip Technology
| Status: | Active |
|---|---|
| Series: | AT32UC3C0512C |
| RoHS: | Compliant |
The AT32UC3C Event System provides a connection between on-chip peripherals to off-load the CPU, saves power consumption and provides a 100% deterministic response to external and internal events.
The AT32UC3C0512CAU is the Audio version of the AT32UC3C0512C. It allows the execution of Microchip licensed Audio firmware IPs.
One version is available:
- AT32UC3C0512CAU-ALUT: LQFP144, industrial (-40°C to +85°C), tray conditioning.
Specifications
| Part Family | AVR C Series |
|---|---|
| CPU Type | 32-bit AVR MCU |
| MaxSpeed (MHz) | 66 |
| Program Memory Size (KB) | 512 |
| SRAM (KB) | 68 |
| Data EEPROM (bytes) | 0 |
| Temp. Range Min. | -40 |
| Temp. Range Max. | 85 |
| Operation Voltage Min.(V) | 3 |
| Operation Voltage Max.(V) | 3.6 |
| Direct Memory Access (DMA) Channels | 16 |
| SPI™ | 7 |
| I2C | 3 |
| UART | 5 |
| I2S | 1 |
| Ethernet | 10/100 Base-TX Mac |
| Quadrature Encoder Interface (QEI) | 2 |
| Crypto Engine | No |
| Number of USB Modules | 1 |
| USB Interface | None |
| Number of CAN Modules | 2 |
| Type of CAN module | None |
| ADC Channels | 16 |
| Max ADC Resolution (bits) | 12 |
| Max ADC Sampling Rate (ksps) | 2000 |
| Number of DACs | 2 |
| Input Capture | 12 |
| Standalone Output Compare/ Standard PWM | 0 |
| Motor Control PWM Channels | 0 |
| Max 16 Bit Digital Timers | 6 |
| Number of Comparators | 4 |
| Internal Oscillator | 120Mhz, 8Mhz, 115Khz |
| Hardware RTCC | Yes |
| Max I/O Pins | 123 |
| Pin Count | 144 |
| Low Power | No |
| Pins | Packaging | 144 | LQFP |
| Temp Range | -40C to +85C |
| Packing Media | Tape and reel (800) |
Resources
Data Sheets |
|---|
| Atmel AVR 32-bit Architecture Manual - Complete Datasheet |
| AT32UC3C Series - Complete Datasheet |
| AT32UC3C Series - Summary Datasheet |
| AVR32UC Technical Reference Datasheet |
Supporting Collateral |
|---|
| Next-Generation IDE: Maximizing IP Reuse |
| AVR and AVR32 - Quick Reference Guide |
User Guides |
|---|
| Atmel AVR32919: UC3C Evaluation Kit - The Atmel AT32UC3C-EK is an evaluation kit and development system for the Atmel AVR AT32UC3C0512C microcontroller. |
| AVR Assembler |
Environmental Information
| JEDEC Indicator | e3 |
|---|---|
| ROHS | Compliant |
| China EFUP | Compliant |
| Device Weight (g) | 1.3928 |
| Shipping Weight (kg) | 2.285714 |
| Lead Count | 144 |
| Package Type | LQFP |
| Package Width or Size | 20x20x1.4mm |
| Soldering Composition | Matte Tin |
Alternative Descriptions
| MCU, 32BIT, AVR, 66MHZ, LQFP-144 | Farnell |
| Tqfp, Ind Temp, Green, T&r 144 Lqfp 20X20X1.4Mm T/R Rohs Compliant: Yes |Microchip AT32UC3C0512C-ALUR | Newark Electronics |
| TQFP, IND TEMP, GREEN, T&R | Microchip Technology |
| MCU 32-bit AT32 AVR RISC 512KB Flash 3.3V/5V 144-Pin LQFP T/R | Avnet America |
