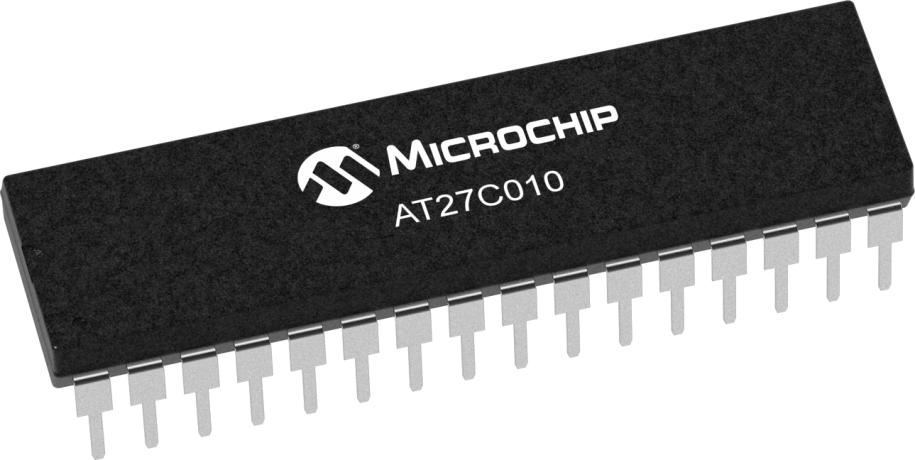

AT27C010-70PU More Semiconductors - ICs by Microchip Technology
1Mb (128Kbit x 8) OTP EPROM
| Status: | Active |
|---|---|
| Series: | AT27C010 |
| RoHS: | Compliant |
Where to Buy
Prices starting from US$3.63
| Distributor | Stock | ||
|---|---|---|---|
|
RS
from US$5.07
|
3,797
in stock
|
Buy Now |
|
Microchip Technology
from US$3.81
|
71,909
in stock
|
Buy Now |
|
element14
from US$4.74
|
5,792
in stock
|
Buy Now |
|
Farnell
from US$4.98
|
5,542
in stock
|
Buy Now |
|
Future Electronics
from US$4.06
|
5,436
in stock
|
Buy Now |
|
Newark Electronics
from US$4.27
|
372
in stock
|
Buy Now |
|
Schukat Electronic
from US$5.23
|
288
in stock
|
Buy Now |
|
Chip One Stop
from US$3.63
|
151
in stock
|
Buy Now |
|
TME
from US$4.86
|
96
in stock
|
Buy Now |
|
CoreStaff
from US$5.79
|
56
in stock
|
Buy Now |
|
|
RS Americas
from US$3.97
|
18
in stock
|
Buy Now |
|
EBV Elektronik
-
|
420
in stock
|
Buy Now |
|
Avnet America
from US$3.68
|
-
|
Buy Now |
|
Avnet Silica
-
|
-
|
Buy Now |
| Buy Now |
Specifications
| Density (Organization) | 1Mb |
|---|---|
| Operating Voltage Min. (V) | 4.5 |
| Oper Voltage Max (V) | 5.5 |
| Read Access Speed (Par Flash) | 45/70ns |
| Page Size (bytes) | 1 |
| Write Protected | False |
| Data Retention (Years) | 20 |
| Battery Backup | False |
| Pins | Packaging | 32 | PDIP |
| Temp Range | -40C to +85C |
| Packing Media | Tube (12) |
Last 6 months Inventory & Pricing History
Resources
Data Sheets |
|---|
| AT27C010 Data Sheet |
Environmental Information
| JEDEC Indicator | e3 |
|---|---|
| ROHS | Compliant |
| China EFUP | Compliant |
| Device Weight (g) | 5.2276 |
| Shipping Weight (kg) | 6.363636 |
| Lead Count | 32 |
| Package Type | PDIP |
| Package Width or Size | .600in |
| Soldering Composition | Matte Tin |
Alternative Descriptions
| 70NS, PDIP, IND TEMP, GREEN | Microchip Technology |
| EPROM, OTP, 1MBIT, PDIP-32 | element14 |
| AT27C010 Series 1 M-bit (128 K x 8) 5 V 70 ns OTP EPROM - PDIP-32 | Future Electronics |
| EPROM OTP 1M-bit 128Kx8 70ns 32-Pin PDIP | RS |
| One Time Programmable (Otp) Eprom Ic | Newark Electronics |
| OTP-ROM 5V 128kx8 70ns DIP32 | Schukat Electronic |
| IC: EPROM memory | TME |
| AT27C010-70PU, EPROM Memory Chip 1Mbit 128K x 8 bit 70ns 20-Pin PDIP | RS Americas |
| EPROM, One Time Programmable, 70 ns, 128K x 8bit, 1 Mbit, 4.5 V to 5.5 V, DIP-32 | EBV Elektronik |
