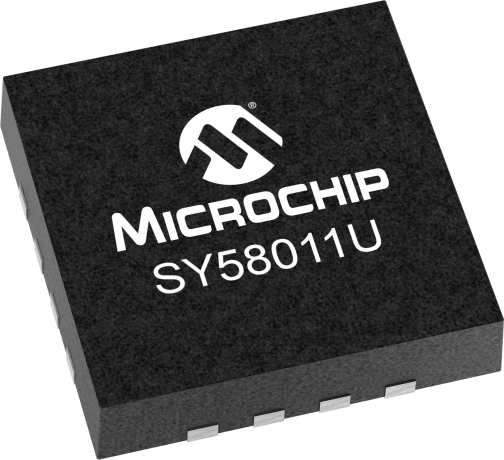

SY58011UMG More Semiconductors - ICs by Microchip Technology

Status: Active
Series: SY58011U
RoHS: Compliant
View Datasheet Manufacturer Site View Pricing & Stock

The SY58011U is a 2.5V/3.3V precision, high-speed, fully differential 1:2 CML fanout buffer. Optimized to provide two identical output copies with less than 15ps of skew and less than 10ps(pk-pk) total jitter, the SY58011U can process clock signals as fast as 7GHz or data patterns up to 10.7Gbps.The differential input includes Micrel's unique, 3-pin input termination architecture that interfaces to LVPECL, LVDS, or CML differential signals, (AC-coupled or DC-coupled) as small as 100mV without any level-shifting or termination resistor networks in the signal path. For AC-coupled input interface applications, an on-board output reference voltage (VREF-AC) is provided to bias the VT pin. The outputs are compatible with 400mV typical swing into 50Ω loads, with extremely fast rise/fall times guaranteed to be less than 60ps.The SY58011U operates from a 2.5V ±5% supply or 3.3V ±10% supply and is guaranteed over the full industrial temperature range (-40°C to +85°C). For applications that require LVPECL outputs, consider the SY58012U or SY58013U 1:2 fanout buffer with 800mV and 400mV output swing, respectively. The SY58011U is part of Micrel's highspeed, Precision Edge® product line.

Prices starting from US$7.48


Distributor Starting From Stock
Logo for Chip One Stop Chip One Stop US$7.48
133
Buy Now
Logo for Newark Electronics Newark Electronics US$11.98
20
Buy Now
Logo for Avnet Silica Avnet Silica -
200
Buy Now
Logo for Future Electronics Future Electronics US$11.30
-
Buy Now
Logo for Avnet America Avnet America US$11.52
-
Buy Now
Logo for Microchip Technology Microchip Technology US$8.86
-
Buy Now
Logo for EBV Elektronik EBV Elektronik -
-
Buy Now
View Full Pricing & Stock Comparison

Features

Precision 1:2, 400mV CML fanout buffer
>7GHz fMAX clock
<60ps tr/tf times
<250ps tpd
<15ps max. skew
<10psPP total jitter (clock)
<10psPP deterministic jitter (data)
Accepts an input signal as low as 100mV
Unique input termination and VT pin accepts DCcoupled and AC-coupled differential inputs: LVPECL, LVDS, and CML
50O source terminated CML outputs
Power supply 2.5V ±5% and 3.3V ±10%
Industrial temperature range: -40°C to +85°C
Available in 16-pin (3mm x 3mm) MLF® package

Specifications

Product Type Fanout & Buffer and Drivers
Description 1:2
Input ANY
Output CML
Supply Voltage 2.5/3.3
Max Freq (GHz) 7
Max Data (Gbps) 10.7
Max Prop Delay (ps) 250
Icc (mA) 75
Power Supply 0
Max Within Device Skew (ps) 15
OE False
RPE False
FSI False
Input Mux False
Input EQ True
Delay Resolution ps/step 0
Output Type CML
Number Of Outputs 0
Pins | Packaging 16 | VQFN
Temp Range -40C to +85C
Packing Media Tube (100)

Environmental Information

JEDEC Indicator e4
ROHS Compliant
China EFUP Compliant
Device Weight (g) 0.0213
Shipping Weight (kg) 0.05
Lead Count 16
Package Type VQFN
Package Width or Size 3x3x1.00mm
Soldering Composition NiPdAu

Alternative Descriptions

IC, 7GHZ, BUF/TRANSLATOR, 1: 2, 16MLF | Farnell
Ic, 7Ghz, Buf/Translator, 1:2, 16Mlf | Newark Electronics
ULTRA HIGH SPEED 1:2 CML FANOUT BUFFER/TRANSLATOR | Avnet Silica
SY58011U Series 7 GHz 1:2 CML Fanout Buffer/Translator - MLF-16 | Future Electronics
Ultra High Speed 1:2 CML Fanout Buffer/Translator | Microchip Technology
