A key safety equipment in residential and commercial constructions is a smoke detector that signals the presence of smoke and fire and sounds an alarm to notify residents. The two main types are:

What are ionization smoke detectors?

The smoke detector, which identifies invisible smoke particles, is an ionization detector that employs sensors containing radioactive material to detect smoke. These detectors can more easily sense flaming fires, as shown in Fig. 1.

Fig. 1 Ionization smoke detector sensitive to flaming fires. Source: Rakesh Kumar, Ph.D.

Components of Ionization Smoke Detectors

The components of an ionization smoke detector are:

  • Printed circuit board with a microcontroller
  • Ionization chamber
  • Speaker

Radioactive material

Americium (Am) is one of the man-made chemical elements. Americium-241 isotope is a radioactive substance frequently used in ionization smoke detectors. It was created artificially in a nuclear reactor using plutonium-239.

It has 95 electrons, 146 neutrons, and 95 protons. It has a 433-year half-life. The alpha-particle emission property of isotope americium-241 is used in smoke detectors.

Is it safe to install this radioactive material in a home?

The majority of smoke detectors employ 0.9 microcuries of americium-241. The source is thinly rolled and encased in two layers of metal. This "foil" is quite safe because it is sealed inside the ionization chamber. Radiation levels in smoke detectors are incredibly low and can be safely installed in homes.

Additionally, it is mostly alpha radiation. A piece of paper or a few centimeters of air can stop the alpha energy from passing through. Opening the ionization chamber can only be hazardous, especially if it is inhaled.

Ionization Chamber

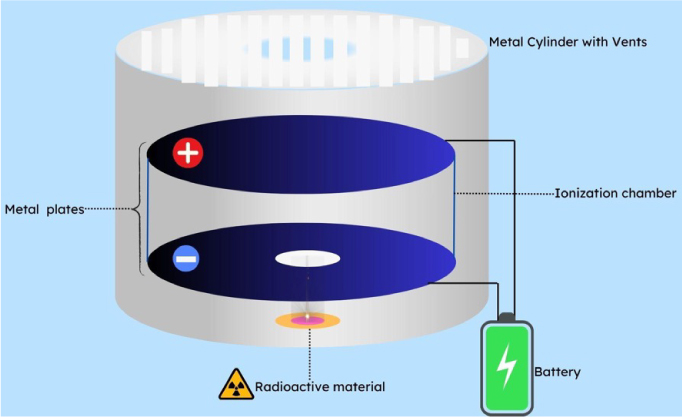

Fig. 2 shows a diagrammatic representation of an ionization smoke detector. A metal cylinder with vents that allow air to enter and exit the detector is the component that detects smoke.

Inside is a small cylinder with metal plates on top and bottom that serves as an ionization chamber. The radioactive material is enclosed in foil and located in the center of the bottom metal plate.

Fig. 2 A diagrammatic illustration of ionization smoke detector. Source: Rakesh Kumar, Ph.D.

Basic Principles of Smoke Detectors

The primary mechanism underlying smoke detectors are:

  • Alpha decay
  • Ionizing radiation

Alpha Decay

A form of radioactive decay known as "alpha decay" occurs when an unstable atomic nucleus changes into a new atomic nucleus with a mass number that is reduced by two and an atomic number that is reduced by four, as shown in Fig. 3. This process releases an alpha particle, a helium-4 nucleus, with two protons and two neutrons.

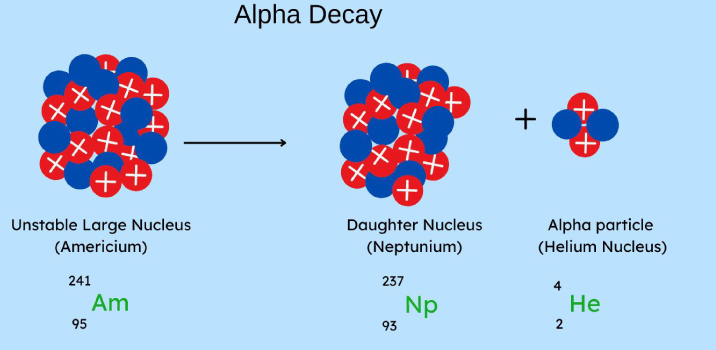

Fig. 3 Illustration of alpha decay using americium. Source: Rakesh Kumar, Ph.D.

What is the reason for the nuclei to become unstable?

The two forces described below are the reason for the larger nuclei to become unstable.

Electromagnetic Force

Electromagnetic force is the fundamental interaction in atomic structure. This force can be either repulsive or attractive, depending on the type of charges involved. As seen in Fig. 4, the opposing charges attract each other (protons and electrons attract), whereas the like charges repel (protons and protons repel).

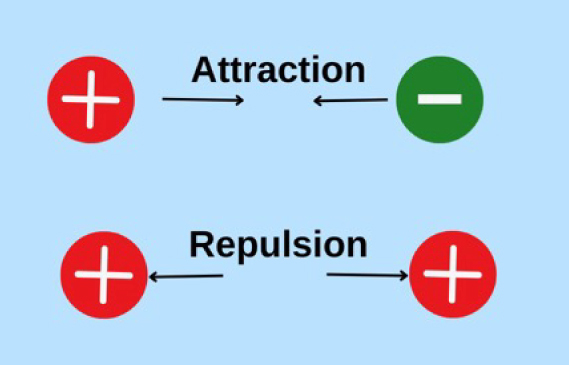

Fig. 4 Electromagnetic force. Source: Rakesh Kumar, Ph.D.

Nuclear Force

The nuclear force is one of the strongest forces essential for binding protons and neutrons together in the nucleus, as illustrated in Fig. 5. The only disadvantage of this force is that it is short-ranged. Small nuclei are more stable than large nuclei.

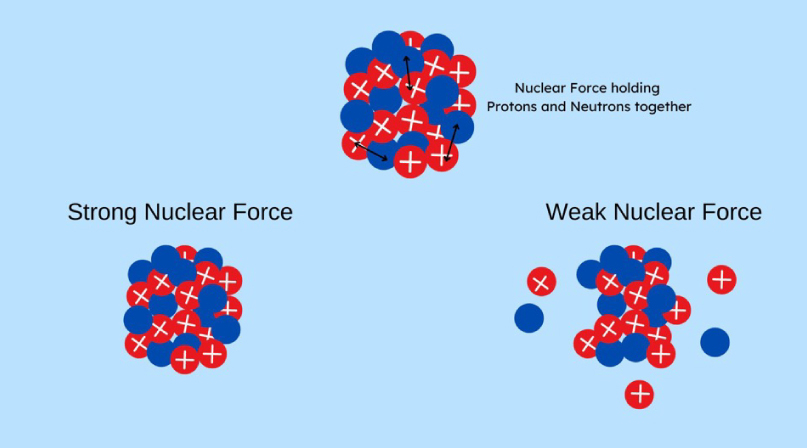

Fig. 5 Nuclear force. Source: Rakesh Kumar, Ph.D.

In the case of heavy nuclei like americium, as shown in Fig. 3, the nuclear force, which is short-ranged (limited distance), cannot reach photons and neutrons that are farther away.

Here, the electromagnetic force of protons will dominate nuclear force, and heavy nuclei will become unstable. This increases the potential for alpha decay, as shown in Fig. 3, which is emitted with high energy and fast-moving, disturbing the other atoms and molecules.

Ionizing Radiation

Ionization radiation is the second principle that drives the operation of a smoke detector. An energy known as "ionizing radiation" can knock off electrons from atoms and molecules.

This type of radiation can interact with many materials, changing the chemical composition of those materials. High-energy particles like gamma rays, X-rays, and beta and alpha particles are examples of ionizing radiation particles.

These radiations travel at extremely high speeds and cause electrons to be knocked off, as shown in Fig. 6. An atom becomes charged after gaining or losing an electron and is called an ion. A single ionizing radiation like an alpha particle can produce thousands of free electrons and positive ions.

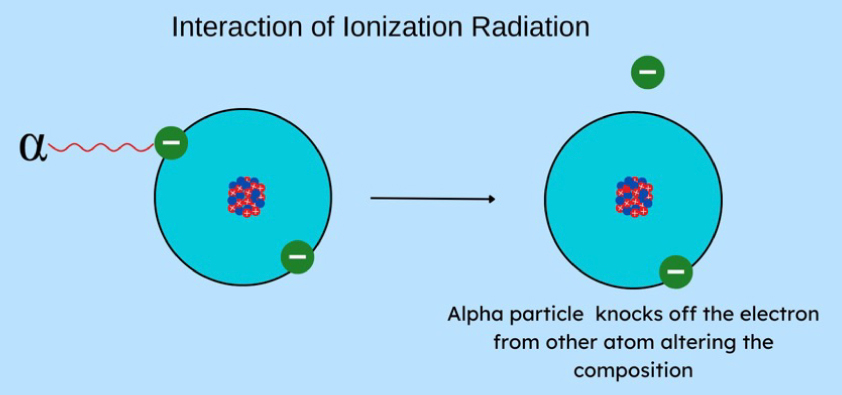

Fig. 6 Ionization radiation. Source: Rakesh Kumar, Ph.D.

These two alpha decay and ionizing radiation principles are used in smoke detectors, which are explained below.

Working of Ionization Smoke Detectors

As previously discussed, americium is a heavy nucleus with 95 protons, 146 neutrons, and 95 electrons. The nuclear force holds protons and neutrons together in nuclei, but positively charged 95 protons provide a strong repulsive force. These two forces act opposite of each other.

Because nuclear force has a limited range (shorter distance), it can only retain protons and neutrons in the near vicinity. Nuclear force cannot reach distant photons and neutrons in heavy nuclei like americium. This will make heavy nuclei unstable.

As a result, Americium in the ionization chamber emits alpha particles (helium nucleus) with a high kinetic energy, striking other atmosphere atoms at a speed of 15,000 km/s. These alpha particles impact atmospheric atoms, producing numerous positively charged nitrogen, oxygen, and other elements with thousands of electrons.

In the ionization chamber of the smoking detector, a battery-operated voltage is applied to the two metal plates, producing a positively charged plate and a negatively charged plate.

When there is no smoke, thousands of free electrons and positively charged nitrogen and oxygen ions are produced by americium. Electrons are drawn toward positively charged plates, and positive ions are drawn toward negatively charged plates, resulting in the current flow. The circuit detects the amount of electrical current, as shown in Fig. 7.

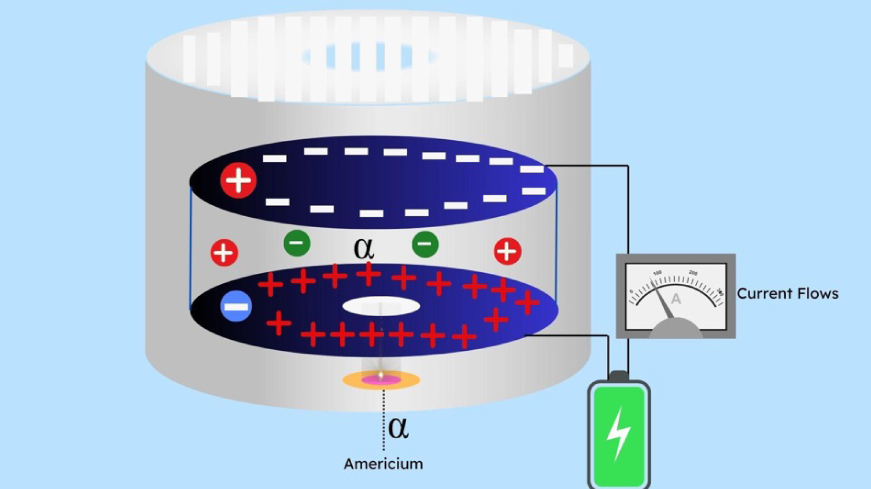

Fig. 7 Working of Ionization smoke detector in the absence of smoke. Source: Rakesh Kumar, Ph.D.

When smoke, including carbon monoxide, carbon dioxide, and other substances, enters the ionization chamber through vents, as shown in Fig. 8, substances in the smoke interact with electrons, ionized air molecules, and alpha particles.

The smoke particles neutralize the ions, interrupting the current flow. The changes in the current flow are detected, activating the alarm.

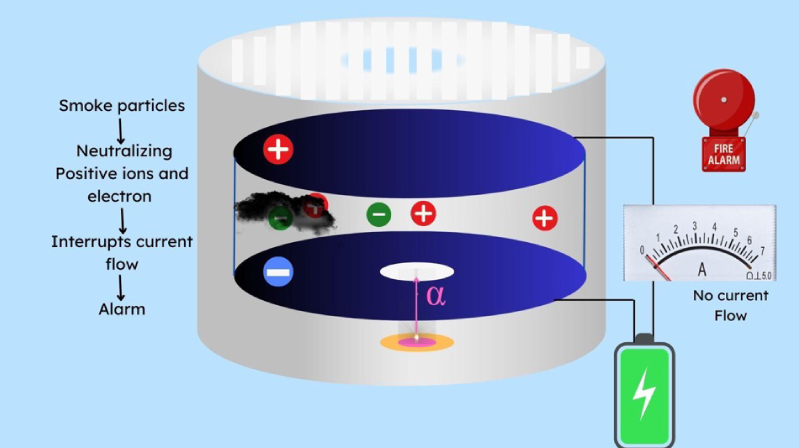

Fig. 8 Working of Ionization smoke detector in the presence of smoke. Source: Rakesh Kumar, Ph.D.

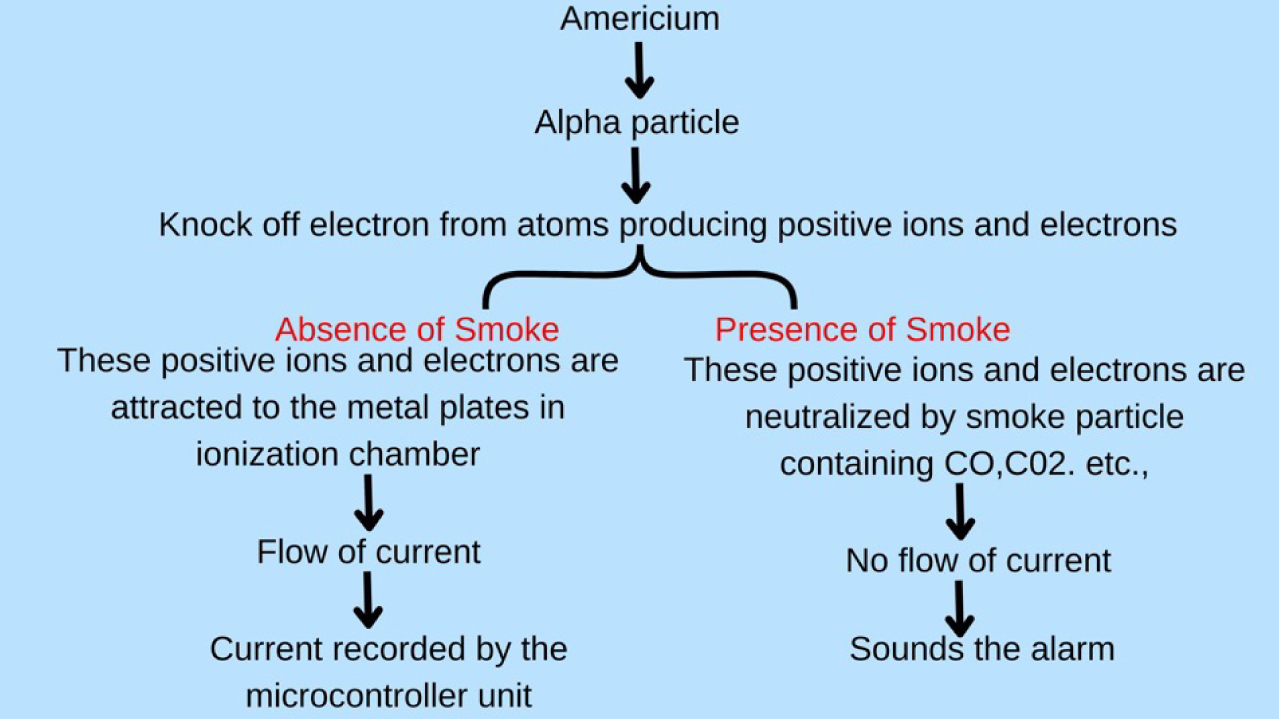

Fig. 9 Comparative working flowchart of smoke detector in the presence and absence of smoke. Source: Rakesh Kumar, Ph.D.

In conclusion, proper installation and maintenance of smoke detectors are vital for optimal performance and longevity, emphasizing the importance of radiation safety and enhancing home security.

Summarizing the Key Points

  • Ionization smoke detectors rely on alpha decay and ionizing radiation for smoke detection, utilizing radioactive material like americium-241.
  • Americium-241 emits alpha radiation, which is easily stopped by barriers like paper, ensuring safety in home installations.
  • Understanding radiation safety in handling americium is crucial for ionizing smoke detectors, as opening the ionization chamber can pose inhalation hazards.
  • Components of smoke detectors include a printed circuit board, a sensor containing a source of radioactive material, an ionization chamber, and a speaker, which are essential for effective fire detection.
