The natural world is filled with analog signals, including sound, light, temperature, pressure, radio, etc, which are continuous and can vary smoothly over time. These signals are challenging to process because digital systems operate on discrete values. An analog-to-digital converter (ADC) is a device that converts continuous analog signals into discrete digital signals.

In contrast, many devices operate on analog signals, for example, speakers and headphones require analog audio signals to produce sound, while motors and actuators need analog control signals to operate smoothly. A digital-to-analog converter (DAC) enables digital devices to connect with these analog systems by converting digital data into analog signals.

Hence, signal processing and converters play a vital role in electronic systems by bridging the gap between the analog and digital worlds. This article provides an overview of DACs.

What is a digital-to-analog converter?

DACs convert digital signals, typically represented as binary codes (combinations of 0s and 1s), into analog signals that are continuous in nature as shown in Fig. 1.

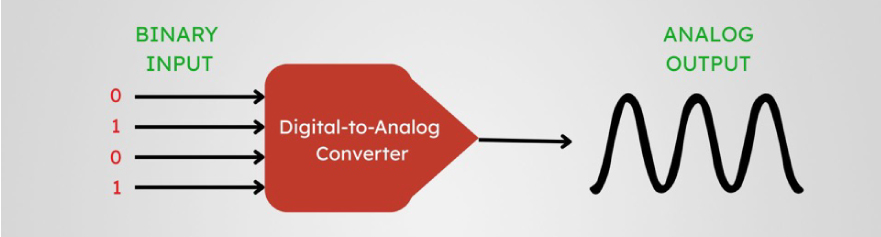

Fig. 1 Diagrammatic illustration of a DAC. Source: Rakesh Kumar, Ph.D.

Key Components of DAC

A DAC typically includes several key components:

Working of DAC

Various steps are involved in the conversion process of a DAC. Once the digital signal is received, it is stored in the digital register, ensuring the input data is stable and ready for conversion. This conversion involves assigning weights to each bit based on its position and summing these weighted values to produce the analog output.

For the particular digital code, we will get the fixed analog output. When a DAC receives a continuously changing digital code at fixed intervals, it generates a corresponding analog output that changes stepwise. Passing this output through a low-pass filter smooths the signal into a continuous waveform.

The resulting analog signal is a continuous waveform representing the original digital data. The analog waveform is then amplified to increase its strength and transmitted to an analog system, such as speakers or headphones, for audio playback or to control devices like motors and sensors.

Types of DAC

There are several types of DAC, each with its own set of benefits and limitations. The most common types include :

  • Binary Weighted Resistor DAC
  • R-2R Ladder DAC

Binary Weighted Resistor DAC

The binary-weighted resistor DAC uses a network of resistors weighted in binary proportions (R, 2R, 4R, etc.). It employs an operational amplifier as a summing amplifier. Advantages include simplicity and good linearity, but it suffers from limited resolution and sensitivity to resistor value variations, making precise manufacturing challenges.

R-2R Ladder DAC

The R-2R Ladder DAC utilizes only two resistor values (R and 2R) arranged in a ladder configuration to achieve binary-weighted outputs. Compared to the weighted resistor method, this approach has certain advantages, which include:

  • This design simplifies manufacturing and improves accuracy since fewer resistor values are needed.
  • Additional R-2R sections can be added to the ladder network to increase the number of bits, which allows for easy scaling of any number of bits.
  • The output impedance remains constant regardless of the number of bits, ensuring stable operation even as the bit depth increases.

The R-2R DAC is widely used in audio systems, video systems, instrumentation, and control systems. The structure of the R-2R ladder DAC is shown in Fig. 2

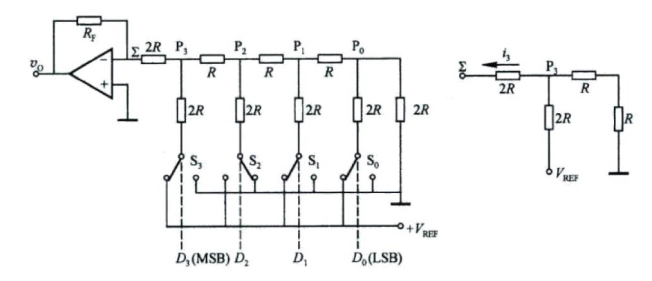

Fig. 2 Structure of R-2R ladder DAC Source: Journal of Physics Conference Series

Key Parameters of DAC

The DAC consists of a number of key parameters, which are discussed below.

Reference Voltage and Maximum Output Voltage

The reference voltage, denoted as Vref, determines the maximum analog voltage the DAC can theoretically produce. However, the actual maximum output is slightly less due to scaling, which can be calculated as

where Vmax is the actual maximum output, Vref is the reference voltage of the DAC, and n is the number of bits.

For an 8-bit DAC with Vref = 5 V, n=8, the actual maximum output is calculated as

In this case, the Vref is 5 V, but the actual maximum out is slightly less, which is 4.98 V. Some DACs generate the reference voltage internally with limited precision, whereas an external reference voltage has a high accuracy. Both reference voltage and maximum output voltage are fundamental to the operation of DACs.

Resolution

Resolution in a DAC is defined as the smallest change in the analog output voltage corresponding to a change of one bit in the digital input. The resolution R can be calculated using the formula:

Resolution is typically measured in bits, and this formula shows that the resolution improves as the number of bits increases, allowing for finer distinctions between output levels.

For example, in an 8-bit DAC with Vref =5 V, the resolution can be calculated as

With the same Vref of 5 V, a 12-bit DAC has a resolution of

An 8-bit DAC can produce  = 256 levels, and a 12-bit DAC can produce  = 4096 levels. Hence, resolution increases with an increase in the number of bits.

In conclusion, DAC plays a key role in audio, telecommunications, instrumentation, medical equipment, virtual reality, automation, and high-fidelity systems, enabling effective communication and control. They have many applications, from enhancing audio experiences to powering industrial controls. As technology advances, DAC design innovations continue to improve performance and efficiency.

Summarizing the Key Points

  • DACs bridge the digital and analog worlds by converting binary data into smooth analog signals.
  • Two common types of DACs include binary weighted resistors and R-2R ladder DACs, each with unique advantages and challenges.
  • Key parameters of the DAC include reference voltage, maximum output voltage, and resolution, which define the precision of the conversion process
